Offsite Pix payments | Developer Documentation

Offsite Pix payments

Updated: Nov 14, 2025
Payments API also enables businesses to collect payments from their customers via WhatsApp using dynamic Pix codes.
When using this integration, WhatsApp only facilitates the communication between merchants and buyers. Merchants are responsible for integrating with a bank or PSP in order to generate dynamic Pix codes, and confirm their payment.

Before you start

    Familiarize yourself with the Orders API. Orders are the entrypoint for collecting payments in WhatsApp.You will need an existing integration with a bank or PSP to generate dynamic Pix codes and do automatic reconciliation when a payment is made. You must be able to update the order status as soon as a payment is made.

    Integration steps

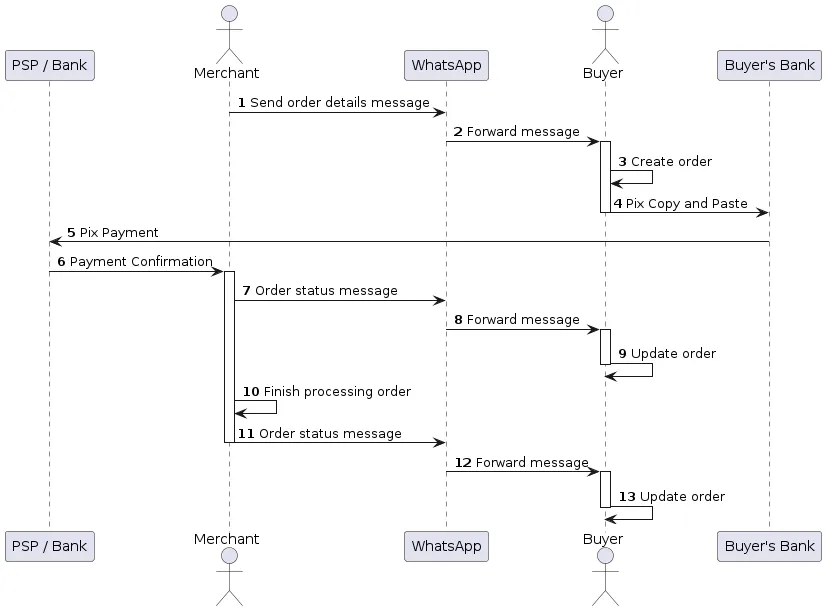

    The following sequence diagram shows the typical integration with Pix.

    1. Send an Order Details message

    Follow the full integration guide in the Orders API page.
    If Pix is available on this order, you will need to provide a pix_dynamic_code to the payment_settings attribute.
    Endpoint
    POST /{PHONE_NUMBER_ID}/messages
    Payload example
    {
  "recipient_type": "individual",
  "to": "<PHONE_NUMBER>",
  "type": "interactive",
  "interactive": {
    "type": "order_details",
    "body": {
      "text": "Your message content"
    },
    "action": {
      "name": "review_and_pay",
      "parameters": {
        "reference_id": "unique-reference-id",
        "type": "digital-goods",
        "payment_type": "br",
        "payment_settings": [
          {
            "type": "pix_dynamic_code",
            "pix_dynamic_code": {
              "code": "00020101021226700014br.gov.bcb.pix2548pix.example.com...",
              "merchant_name": "Account holder name",
              "key": "39580525000189",
              "key_type": "CNPJ"
            }
          }
        ],
        "currency": "BRL",
        "total_amount": {
          "value": 50000,
          "offset": 100
        },
        "order": {
          "status": "pending",
          "tax": {
            "value": 0,
            "offset": 100,
            "description": "optional text"
          },
          "items": [
            {
              "retailer_id": "1234567",
              "name": "Cake",
              "amount": {
                "value": 50000,
                "offset": 100
              },
              "quantity": 1
            }
          ],
          "subtotal": {
            "value": 50000,
            "offset": 100
          }
        }
      }
    }
  }
}
    Parameters object

Field Name

Optional?

Type

Description

    payment_settings
    Optional
    List of payment related configuration objects.
    Payment settings

Field Name

Optional?

Type

Description

    type
    Required
    String
    Must be pix_dynamic_code.
    pix_dynamic_code
    Required
    Dynamic Pix Code object that will be used to render the option to buyers during the checkout flow.
    Dynamic Pix code object
    Field NameOptional?TypeDescription
    code
    Required
    String
    The dynamic Pix code which will be copied by the buyer.
    merchant_name
    Required
    String
    Account holder name. Displayed in-app for the buyer for informational purposes.
    key
    Required
    String
    Pix key. Displayed in-app for the buyer for informational purposes.
    key_type
    Required
    String
    Pix key type. One of CPF, CNPJ, EMAIL, PHONE or EVP.
    2. Send an order status update
    Once the payment is confirmed, you must send an order status update. Follow the integration guide in the Orders API page.
