Configure Call Settings
Updated: Mar 23, 2026
Calling is not enabled by default on a business phone number
Use the
POST /<PHONE_NUMBER_ID>/settings endpoint to enable Calling API features on a business phone number.Calling Eligibility
To qualify for Calling API features, your business must have a messaging limit of at least 2000 business-initiated conversations in a rolling 24-hour period.
When you test your WhatsApp Calling integration using public test numbers (PTNs) and sandbox accounts, Calling API restrictions are relaxed.
Overview
Use these endpoints to view and configure call settings for the WhatsApp Business Calling API.
You can also configure session initiation protocol (SIP) for call signaling instead of using Graph API endpoint calls and webhooks.
Configure/Update business phone number calling settings
Use this endpoint to update call settings configuration for an individual business phone number.
WhatsApp clients reflecting latest calling config
After you update call configuration, WhatsApp users may take up to 7 days to reflect those changes. Most users refresh much sooner. You can force an immediate refresh in WhatsApp by entering the chat window with business and open the chat info page. Regardless of WhatsApp client behavior, the semantics of settings are still honored on the server side.
Request syntax
POST /<PHONE_NUMBER_ID>/settingsEndpoint parameters
| Placeholder | Description | Sample Value |
|---|---|---|
<PHONE_NUMBER_ID>Integer | Required ID of the business phone number for which you are updating Calling API settings. | 106540352242922 |
Request body
{
"calling": {
"status": "ENABLED",
"call_icon_visibility": "DEFAULT",
"call_icons": {
"restrict_to_user_countries": [
"US",
"BR"
]
},
"call_hours": {
"status": "ENABLED",
"timezone_id": "America/Manaus",
"weekly_operating_hours": [
{
"day_of_week": "MONDAY",
"open_time": "0400",
"close_time": "1020"
},
{
"day_of_week": "TUESDAY",
"open_time": "0108",
"close_time": "1020"
}
],
"holiday_schedule": [
{
"date": "2026-01-01",
"start_time": "0000",
"end_time": "2359"
}
]
},
"callback_permission_status": "ENABLED",
"sip": {
"status": "ENABLED | DISABLED (default)",
"servers": [
{
"hostname": SIP_SERVER_HOSTNAME,
"port": SIP_SERVER_PORT,
"request_uri_user_params": {
"KEY1": "VALUE1",
"KEY2": "VALUE2"
}
}
]
},
"audio": {
"additional_codecs": ["PCMA", "PCMU"]
}
}
}
Body parameters
| Parameter | Description | Sample Value |
|---|---|---|
statusString | Optional Enable or disable the Calling API for the given business phone number. | “ENABLED”“DISABLED” |
call_icon_visibilityString | Optional Configure whether the WhatsApp call button icon displays for users when chatting with the business. | |
call_iconsString | Optional Configure whether WhatsApp call button icon displays for users when chatting with the business. | |
call_hoursJSON object | Optional Allows you to specify and trigger call settings for incoming calls based on your timezone, business operating hours, and holiday schedules. Any previously configured values in call_hours will be replaced with the values passed in the request body of this API call. | |
callback_permission_statusString | Optional Configure whether a WhatsApp user is prompted with a call permission request after calling your business. Note: The call permission request is triggered from either a missed or connected call. | “ENABLED”“DISABLED” |
sipJSON object | Optional Configure call signaling via signal initiation protocol (SIP). Note: When SIP is enabled, you cannot use calling related endpoints and will not receive calling related webhooks. | |
audioJSON object | Optional Configure call audio codec settings. Opus is the default codec and is always present. | "audio": { |
Calling status
When the
status parameter is set to “ENABLED”, calling features are enabled for the business phone number. WhatsApp client applications will render the call button icon in both the business chat and business chat profile.When the
status parameter is set to “DISABLED”, calling features are disabled, and both the business chat and business chat profile do not display the call button icon.Updates to
status will update the call button icon in existing business chats in near real-time when the business phone number is in the WhatsApp user’s contacts.Otherwise, updates are real-time for a limited number of users in conversation with the business, and are eventual for the rest of the conversations.
When Calling API features are enabled for a business number, you can still choose whether to show the call button icon or not by using the
call_icon_visibility parameter. Note: Disabling call button icon visibility does not disable a WhatsApp user’s ability to make unsolicited calls to your business.The behavior for supported options is as follows:

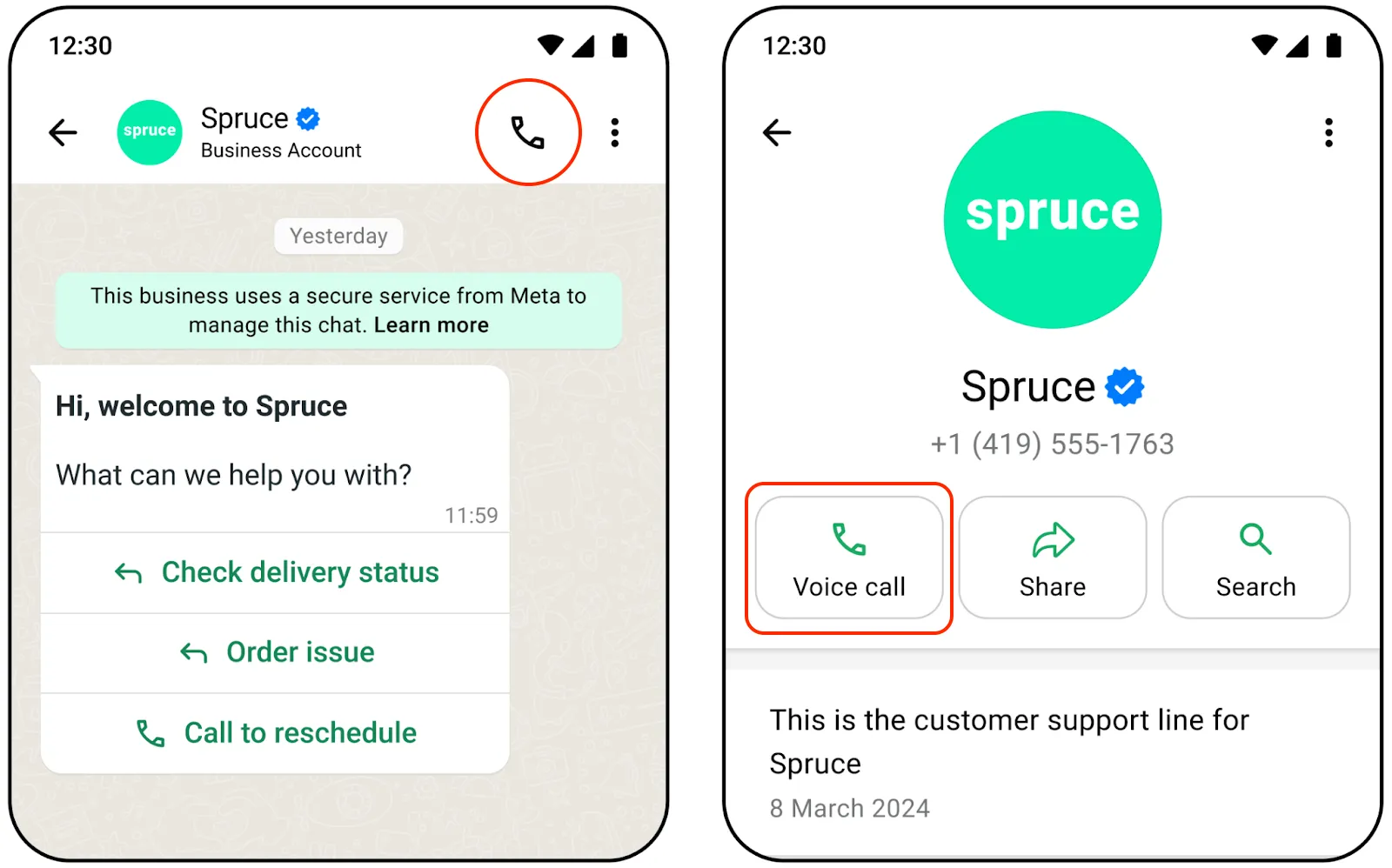

DEFAULTThe Call button icon will be displayed in the chat menu bar and the business info page, allowing for unsolicited calls to the business by WhatsApp users.

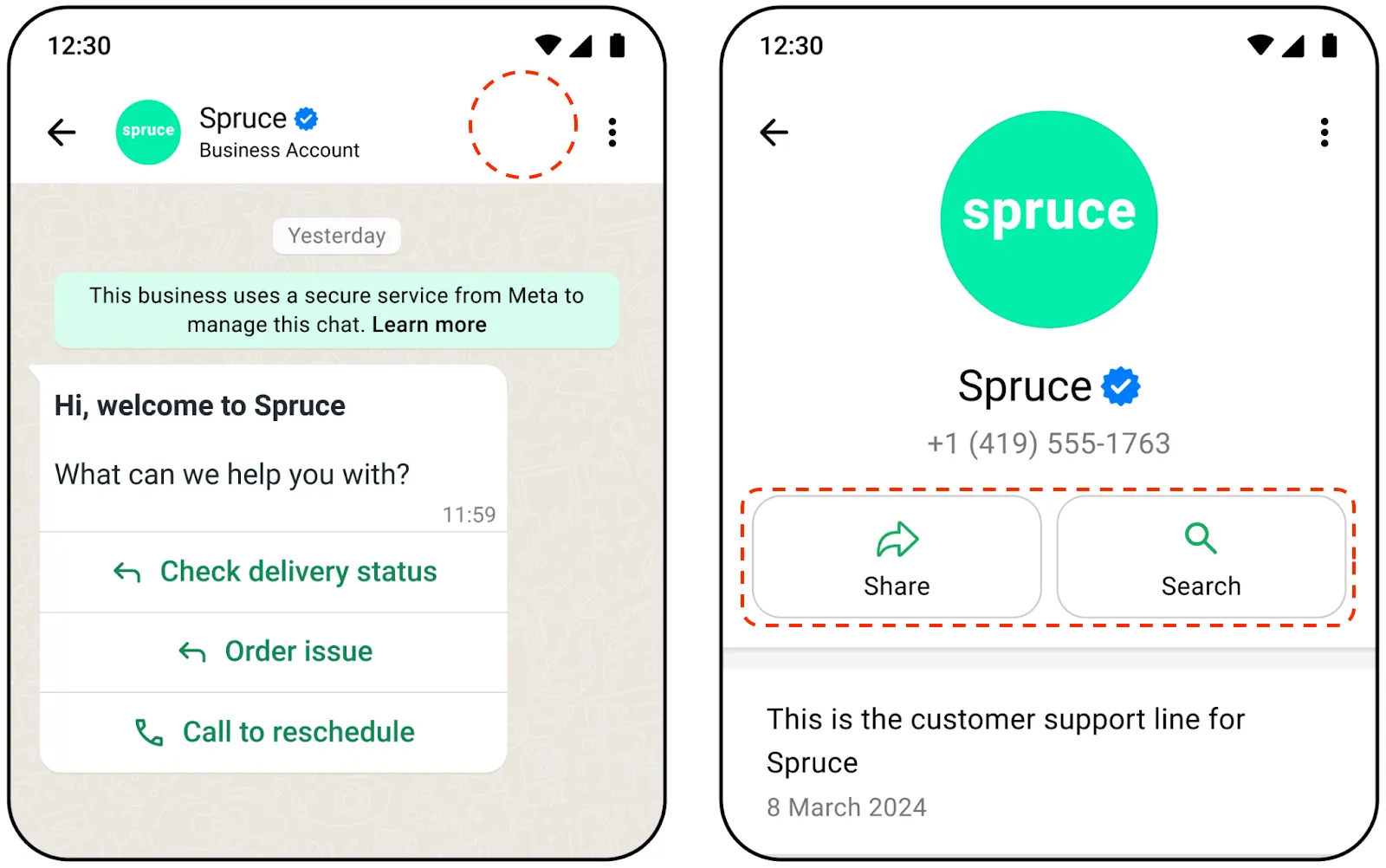

DISABLE_ALLThe call button icon is hidden in the chat menu bar and the business info page, and all other entry points external to the chat are also disabled. Consumers cannot make unsolicited calls to the business.
Your business can still send interactive messages or template messages with a Calling API CTA button.
Callback permissions

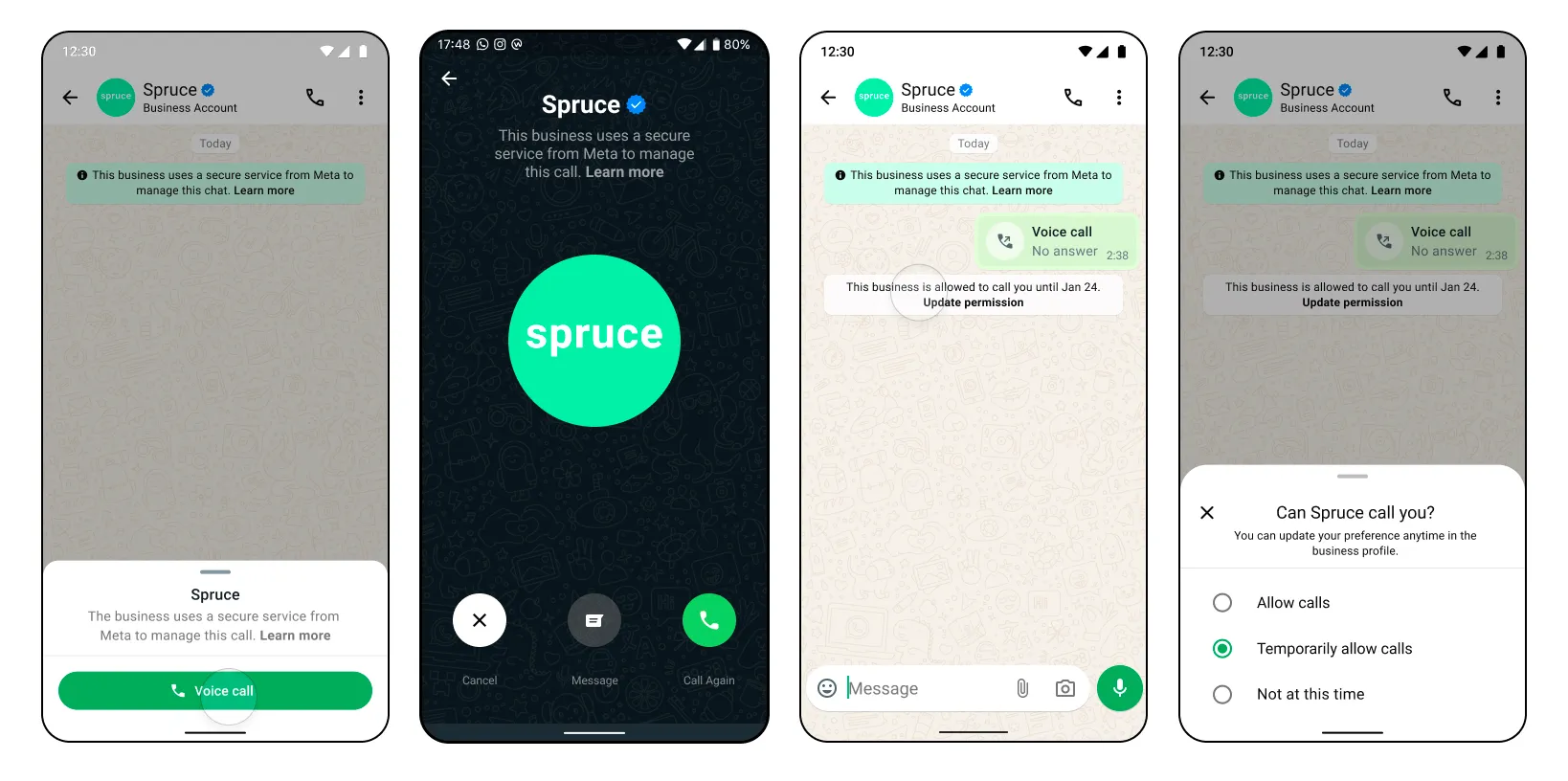

Calling a WhatsApp user requires explicit permission from the user. One way to obtain calling permissions is to request permission when a WhatsApp user calls your business.
You can configure the call permission UI to automatically show in the WhatsApp user’s client app when they call your business number. The user may change their permission selection at any time.
Call icons
With the
call_icons setting, you can specify the countries where these icons should show up."call_icons": {
"restrict_to_user_countries": [
"US",
"BR"
]
}
| Parameter | Description | Sample Values |
|---|---|---|
restrict_to_user_countriesList of Strings | Optional Restrict the visibility of call icons to these countries. NOTE: For example if you restrict it to “US,” then it will apply to all the people who have a US registered phone number. These people could be physically located inside or outside of the USA. | Restrict to US and Brazil: "restrict_to_user_countries": [ No restriction: "restrict_to_user_countries": [] |
Call hours
With the
call_hours setting, you can specify the timezone, business operating hours, and holiday schedules that will be enforced for all user-initiated calls.Configuring this setting restricts calls only to available weekly hours you configure. User-initiated calls are unavailable outside of the weekly hours and holiday schedules you set.

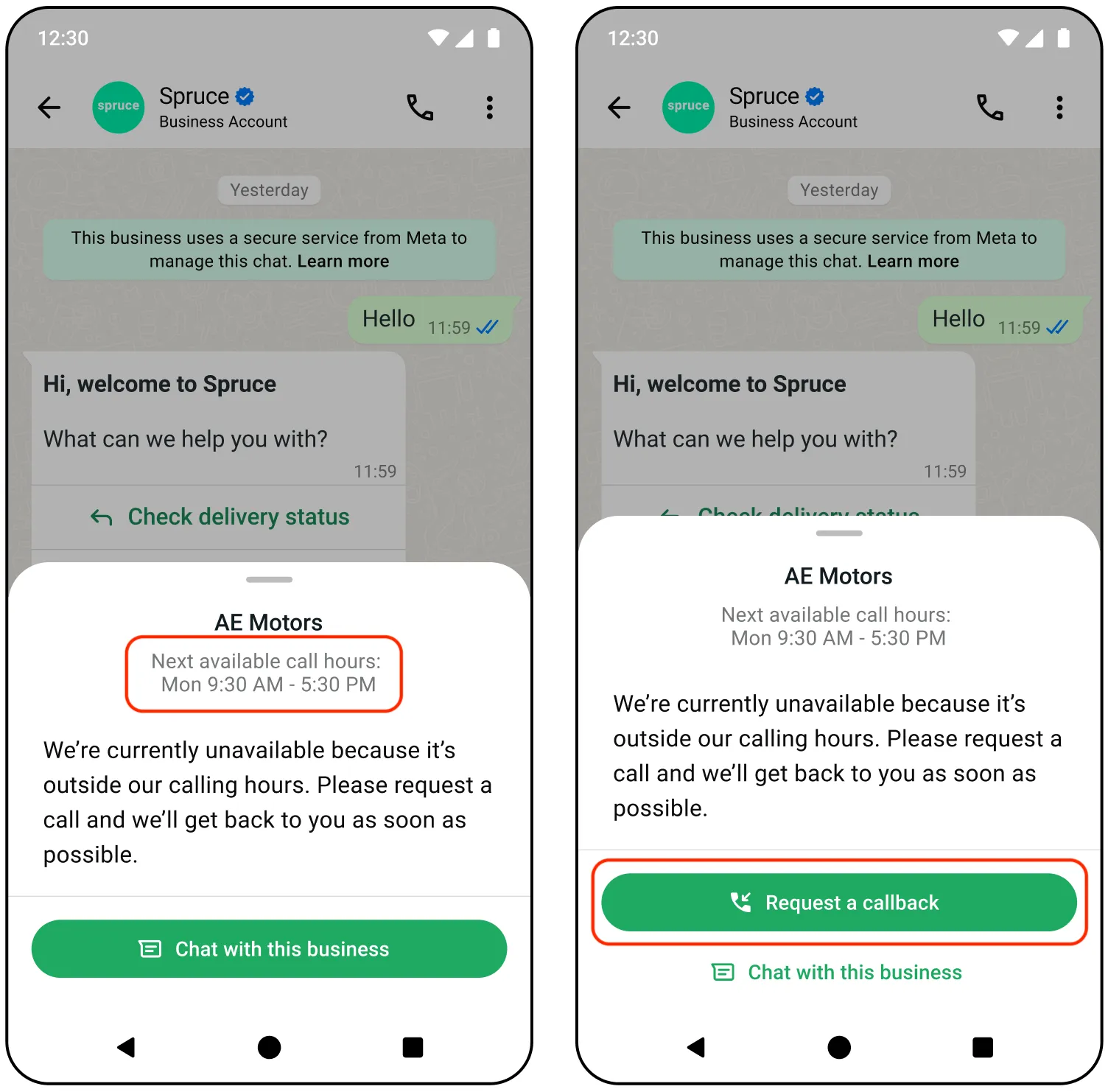

The WhatsApp client app will show users an option to chat with the business, or request a callback, if
callback_permission_status is ENABLED. The user will also be shown the next available calling slot on the option screen.
"call_hours": {
"status": "ENABLED",
"timezone_id": "America/Manaus",
"weekly_operating_hours": [
{
"day_of_week": "MONDAY",
"open_time": "0400",
"close_time": "1020"
},
{
"day_of_week": "TUESDAY",
"open_time": "0108",
"close_time": "1020"
}
],
"holiday_schedule": [
{
"date": "2026-01-01",
"start_time": "0000",
"end_time": "2359"
}
]
}
| Parameter | Description | Sample Values | ||
|---|---|---|---|---|
statusString | Required Enable or disable the call hours for the business. If call hours are disabled, the business is considered open all 24 hours of the day, 7 days a week. | “ENABLED”“DISABLED” | ||
timezone_idString | Required The timezone that the business is operating within. | “America/Menominee”“Asia/Singapore” | ||
weekly_operating_hoursList of JSON object | Required The operating hours schedule for each day of the week. Each entry is a JSON object with 3 key/value pairs: day_of_week — (Enum) [Required]The day of the week. Can take one of seven values: "MONDAY", “TUESDAY”, “WEDNESDAY”, “THURSDAY”, “FRIDAY”, “SATURDAY”, “SUNDAY”
Opening and closing times represented in 24 hour format, for example "1130" = 11:30AMopen_time must be before close_timeOverlapping entries not allowed | { | ||
holiday_scheduleString | Optional An optional override to the weekly schedule. Up to 20 overrides can be specified. Note: If holiday_schedule is not passed in the request, then the existing holiday_schedule will be deleted and replaced with an empty schedule.date — (String) [Required]Date for which you want to specify the override. YYYY-MM-DD format.
Opening and closing times represented in 24 hour format, for example, ”1130” = 11:30AMopen_time must be before close_timeOverlapping entries not allowed | { |
Audio codec
Opus is the default audio codec for all WhatsApp calls. You can enable G.711 (PCMA/PCMU) codecs for interoperability with legacy telephony systems or PSTN gateways.
Guidelines and considerations
"audio": {
"additional_codecs": ["PCMA", "PCMU"]
}
| Parameter | Description | Sample Values |
|---|---|---|
additional_codecsList of Strings | Optional Enable additional audio codecs. Supported values: "PCMA" (G.711 A-law), "PCMU" (G.711 µ-law). Opus is always enabled by default and cannot be removed. After enabling additional codecs, they can be selected during SDP codec negotiation according to RFC 3264. | "additional_codecs": [ No additional codecs: "additional_codecs": [] |
Success response
{
"success": true
}
Error response
Possible errors that can occur:
call_hoursHoliday given in call_hours is a past dateTimezone is invalid in call_hoursweekly_operating_hours in call_hours cannot be emptyDate format in holiday_schedule for call_hours is invalidMore than 2 entries not allowed in weekly_operating_hours schedule in call_hoursOverlapping schedule in call_hours is not allowedGet phone number calling settings
Use this endpoint to check the configuration of your Calling API feature settings.
This endpoint can return information for other Cloud API feature settings.
Request syntax
GET /<PHONE_NUMBER_ID>/settingsEndpoint parameters
| Parameter | Description | Sample Value |
|---|---|---|
<PHONE_NUMBER_ID>Integer | Required ID of the business phone number for which you are getting Calling API settings. | 106540352242922 |
App permission required
whatsapp_business_management: Advanced access is required to use the API for end business clientsResponse body
{
"calling": {
"status": "ENABLED",
"call_icon_visibility": "DEFAULT",
"callback_permission_status": "ENABLED",
"call_hours": {
"status": "ENABLED",
"timezone_id": "[REDACTED]",
"weekly_operating_hours": [
{
"day_of_week": "MONDAY",
"open_time": "0400",
"close_time": "1020"
},
{
"day_of_week": "TUESDAY",
"open_time": "0108",
"close_time": "1020"
}
],
"holiday_schedule": [
{
"date": "2026-01-01",
"start_time": "0000",
"end_time": "2359"
}
]
},
"sip": {
"status": "ENABLED",
"servers": [
{
"hostname": "[REDACTED]",
"sip_user_password": "[REDACTED]"
}
]
},
"audio": {
"additional_codecs": ["PCMA", "PCMU"]
}
},
<Other non-calling feature configuration...>
}
Include SIP user password in response
Optionally, you can include SIP user credentials in your response body by adding the SIP credentials query parameter in the POST request:
GET /<PHONE_NUMBER_ID>/settings?include_sip_credentials=trueWhere the response will look like this:
{
"calling": {
... // other calling api settings
"sip": {
"status": "ENABLED",
"servers": [
{
"hostname": "sip.example.com",
"sip_user_password": "{SIP_USER_PASSWORD}"
}
]
}
}
}
Response details
The
GET /<PHONE_NUMBER_ID>/settings endpoint returns Calling API settings, along with other configuration information for your WhatsApp business phone number.Response with calling restrictions
If your business has restrictions enforced, the response body contains information about the restriction along with other calling API settings.
{
"calling": {
... // other calling api settings
"restrictions": {
"restrictions_list": [
{
"type": "[RESTRICTED_BUSINESS_INITIATED_CALLING|RESTRICTED_USER_INITIATED_CALLING]",
"reason": "Business|User initiated calling capability has been temporarily disabled for this phone number due to high negative feedback from users.",
"expiration": 1754072386
}
]
}
}
}
| Parameter | Description |
|---|---|
<restrictions>JSON Object | The restrictions object contains the following values:
restriction_list (JSON Object): list of currently imposed restrictions with the following values
type (string) - for calling restriction, this would have the value of RESTRICTED_BUSINESS_INITIATED_CALLING or RESTRICTED_USER_INITIATED_CALLINGreason (string) - description of restrictionexpiration (Integer) - The UNIX time at which the restriction will expire in UTC timezone |
Error response
Possible errors that can occur:

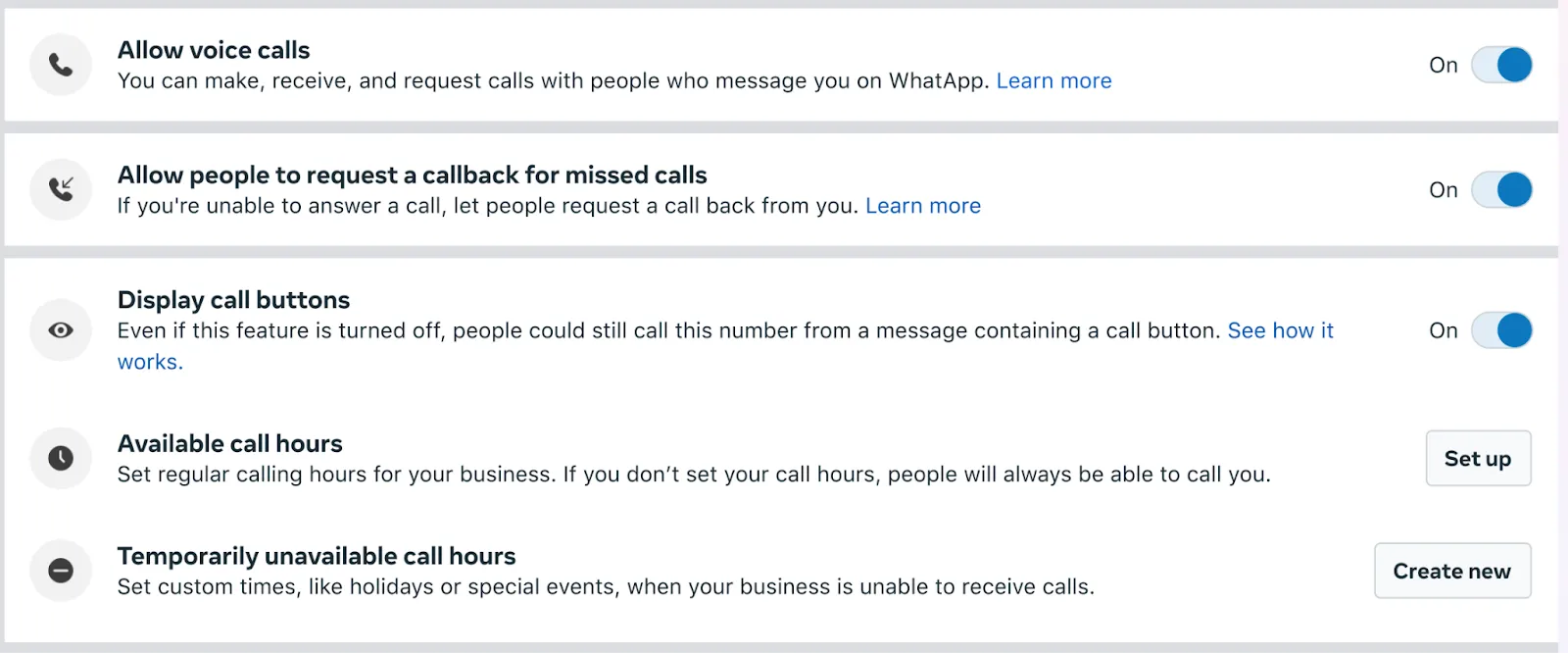

Call settings in WhatsApp Manager
You can also control your call settings via WhatsApp Manager.
To access calling controls in WhatsApp Manager:
Configure and use call signaling via session initiation protocol (SIP)
Session Initiation Protocol (SIP) is a signaling protocol used for initiating, maintaining, modifying, and terminating real-time communication sessions between two or more endpoints. You can send and receive call signals using SIP instead of Graph API endpoints.
Settings update webhooks
You can subscribe to a new webhook subscription field
account_settings_update to get notified on updates to phone number settings.Steps to get started
account_settings_update field.The same app should also be subscribed to the WhatsApp Business Account of your business phone number.Your app should have whatsapp_business_management permission to receive the webhooks. Using access token for the same app, if you’re able to get settings successfully, your app is good to receive the webhooks too.Webhook payload
{"object":"whatsapp_business_account","entry":[{"id":"whatsapp-business-account-id","changes":[{"value":{"messaging_product":"whatsapp","timestamp":"1671644824","type":"[phone_number_settings]","phone_number_settings":{"phone_number_id":"phone-number-id","calling":{"status":"ENABLED","call_icon_visibility":"DEFAULT","callback_permission_status":"ENABLED","call_hours":{"status":"ENABLED","timezone_id":"[REDACTED]","weekly_operating_hours":[{"day_of_week":"MONDAY","open_time":"0400","close_time":"1020"},{"day_of_week":"TUESDAY","open_time":"0108","close_time":"1020"}],"holiday_schedule":[{"date":"2026-01-01","start_time":"0000","end_time":"2359"}]},"sip":{"status":"ENABLED","servers":[{"hostname":"[REDACTED]","port": SIP_SERVER_PORT
}]}}}},"field":"account_settings_update"}]}]}Webhook values
| Placeholder | Description |
|---|---|
messaging_productString | Always whatsapp for now |
timestampInteger | Time when the settings got updated |
typeString | Type of the change. Currently only PHONE_NUMBER_SETTINGS |
phone_number_settingsObject | This field is present if the type is PHONE_NUMBER_SETTINGS. Currently only calling sub-field under this is supported. |
phone_number_settings.phone_number_idString | The phone number id, whose settings got updated |
phone_number_settings.callingObject | This is present only if fields related to calling are updated. It’s null otherwise. When present, the payload is same as Get settings API |
Calling restrictions for user feedback
If your calls receive a high negative user feedback, such as blocks and reports, business initiated calling, user initiated calling, or both functionalities on your phone number can be restricted.
Early warning
You will be notified when the business phone number is close to being paused as an early warning. The early warning notifications will be communicated via below channels
Enforcement emails are sent to the email addresses of all users and admins associated with the business.
If you did not receive an email, confirm which email you have designated as the contact email for your app and make sure that it is active, can receive new email, and does not flag the email as junk or spam mail.
Webhook
A webhook will be sent on the
account_update field:{
"object": "whatsapp_business_account",
"entry": [
{
"id": "0",
"time": 1623862418,
"changes": [
{
"field": "account_update",
"value": {
"phone_number": "PN",
"event": "ACCOUNT_VIOLATION",
"violation_info": {
"violation_type": "[LOW_BUSINESS_INITIATED_CALLING_QUALITY|LOW_USER_INITIATED_CALLING_QUALITY]",
}
}
}
]
}
]
}
If either business or user initiated calling are close to being paused, you will receive a webhook for the respective violation type. Refer account_update for information about the webhook.
Pause in calling functionality
Once the negative user feedback reaches a threshold, Cloud API will automatically restrict calling functionality on your phone number for a period of 7 days. While paused the calling phone number will be unable to
Once your phone number has been paused, notifications will be communicated via below channels.
Note: Any call permissions approved or declined by the users while paused, will still be valid.
Enforcement emails are sent to the email addresses of all users and admins associated with the business.
If you did not receive an email, confirm which email you have designated as the contact email for your app and make sure that it is active, can receive new email, and does not flag the email as junk or spam mail.
Webhook
A webhook will be sent on the
account_update field:{
"object": "whatsapp_business_account",
"entry": [
{
"id": "0",
"time": 1641848059,
"changes": [
{
"field": "account_update",
"value": {
"phone_number": "PN",
"event": "ACCOUNT_RESTRICTION",
"restriction_info": [
{
"restriction_type": "RESTRICTED_BUSINESS_INITIATED_CALLING",
"expiration": 1641848057
}
]
}
}
]
}
]
}
Refer account_update for information about the webhook.
Pause in user initiated calling functionality
Once the negative user feedback reaches a threshold, Cloud API will automatically restrict user initiated calling functionality on your phone number for a period of 7 days. While paused the calling phone number will be unable to
Once your phone number has been paused, notifications will be communicated via below channels.
Enforcement emails are sent to the email addresses of all users and admins associated with the business.
If you did not receive an email, confirm which email you have designated as the contact email for your app and make sure that it is active, can receive new email, and does not flag the email as junk or spam mail.
Webhook
A webhook will be sent on the
account_update field:{
"object": "whatsapp_business_account",
"entry": [
{
"id": "0",
"time": 1641848059,
"changes": [
{
"field": "account_update",
"value": {
"phone_number": "PN",
"event": "ACCOUNT_RESTRICTION",
"restriction_info": [
{
"restriction_type": "RESTRICTED_USER_INITIATED_CALLING",
"expiration": 1641848057
}
]
}
}
]
}
]
}
Refer account_update for information about the webhook.
Calling restrictions for low call pickup rates
When calling is enabled on your business phone number, you are expected to pick up calls that users place to you.
If a significant number of calls placed to your calling-enabled business phone number are not picked up, you will be notified and expected to make a change.
What happens if you do not pick up calls
How to mitigate the situation
If you receive a warning
Webhooks
Warning webhook
[
{
"object": "whatsapp_business_account",
"entry": [
{
"id": "0",
"time": 1641848059,
"changes": [
{
"field": "account_update",
"value": {
"phone_number": "16505552771",
"event": "ACCOUNT_VIOLATION",
"violation_info": {
"violation_type": "USER_INITIATED_CALLS_LOW_PICKUP_RATE",
"remediation": "Please identify and address the cause of user-initiated calls not being picked up and make sure the business is properly resourced to handle expected call volumes."
}
}
}
]
}
]
}
]
Enforcement webhook
[
{
"object": "whatsapp_business_account",
"entry": [
{
"id": "0",
"time": 1641848059,
"changes": [
{
"field": "account_update",
"value": {
"phone_number": "16505552771",
"event": "ACCOUNT_RESTRICTION",
"restriction_info": [
{
"restriction_type": "RESTRICTED_USER_INITIATED_CALLING_CALL_BUTTON_HIDDEN",
"remediation": "The call button has been hidden due to low pickup rates. Please identify and address the cause of user-initiated calls not being picked up. Next, display the calling buttons by either working with your partner or going to WhatsApp Manager > Account tools > Phone numbers > select Phone number > Calls > toggle on Display call buttons"
}
]
}
}
]
}
]
}
]
No comments to display
No comments to display
