Boleto
Updated: Nov 14, 2025
Payments API also enables businesses to collect payments from their customers via WhatsApp using Boleto.
When using this integration, WhatsApp only facilitates the communication between merchants and buyers. Merchants are responsible for integrating with a PSP from which they can generate Boleto codes, and confirm their payment.
Before you start
Integration steps

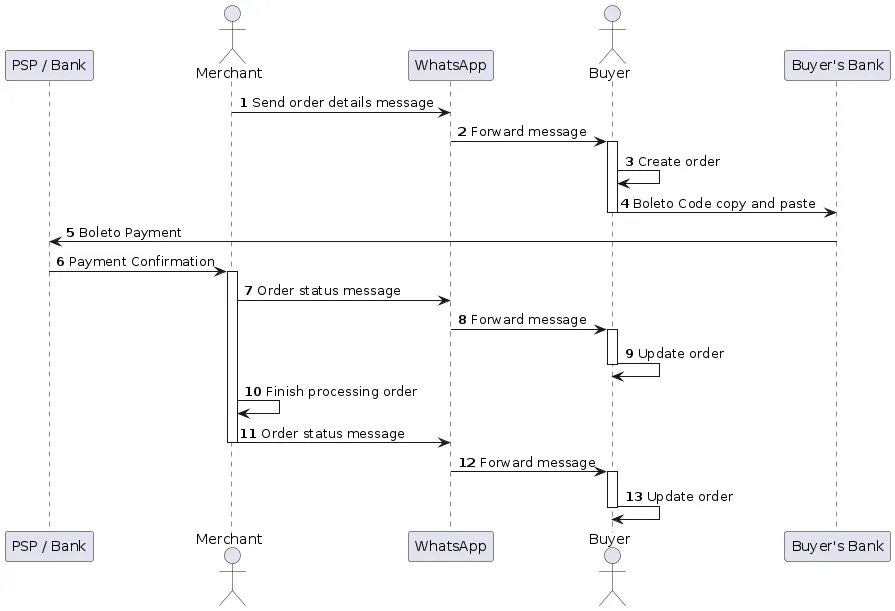

The following sequence diagram shows the typical integration with Boleto.
1. Send an Order Details message
Follow the full integration guide in the Orders API page.
If Boleto payment is available on this order, you will need to provide a
boleto object in the payment_settings attribute.Endpoint
POST /{PHONE_NUMBER_ID}/messagesPayload example
{
"recipient_type": "individual",
"to": "<PHONE_NUMBER>",
"type": "interactive",
"interactive": {
"type": "order_details",
"body": {
"text": "Your message content"
},
"action": {
"name": "review_and_pay",
"parameters": {
"reference_id": "unique-reference-id",
"type": "digital-goods",
"payment_type": "br",
"payment_settings": [
{
"type": "boleto",
"boleto": {
"digitable_line": "03399026944140000002628346101018898510000008848"
}
}
],
"currency": "BRL",
"total_amount": {
"value": 50000,
"offset": 100
},
"order": {
"status": "pending",
"tax": {
"value": 0,
"offset": 100,
"description": "optional text"
},
"items": [
{
"retailer_id": "1234567",
"name": "Cake",
"amount": {
"value": 50000,
"offset": 100
},
"quantity": 1
}
],
"subtotal": {
"value": 50000,
"offset": 100
}
}
}
}
}
}
Parameters object
| Field Name | Optional? | Type | Description |
|---|---|---|---|
payment_settings | Optional | List of payment related configuration objects. |
Payment settings
| Field Name | Optional? | Type | Description |
|---|---|---|---|
type | Required | String | Must be boleto. |
boleto | Required | Boleto object that will be used to render the option to buyers during the checkout flow. |
Boleto object
| Field Name | Optional? | Type | Description |
|---|---|---|---|
digitable_line | Required | String | The Boleto digital line / code which will be copied to the clipboard, when user taps on the Boleto CTA button. |
2. Send an order status update
Once the payment is confirmed, you must send an order status update. Follow the integration guide in the Orders API page.
