API and Webhook Reference

Updated: Nov 25, 2025

Calling API endpoints

Configure or update calling settings

Call the Update Phone Number Settings endpoint and pass in Calling API parameters to configure settings on a business phone number you designate in the request syntax.
Request syntax
POST /<PHONE_NUMBER_ID>/settings
Endpoint parameters
Placeholder Description Sample Value
<PHONE_NUMBER_ID>
Integer
Required
The business phone number for which you are updating Calling API settings.
+12784358810
Request body
{
"calling": {
"status": "ENABLED",
"call_icon_visibility": "DEFAULT",
"call_hours": {
"status": "ENABLED",
"timezone_id": "America/Manaus",
"weekly_operating_hours": [
        {
"day_of_week": "MONDAY",
"open_time": "0400",
"close_time": "1020"
        },
        {
"day_of_week": "TUESDAY",
"open_time": "0108",
"close_time": "1020"
        }
      ],
"holiday_schedule": [
        {
"date": "2026-01-01",
"start_time": "0000",
"end_time": "2359"
        }
      ]
    },
"callback_permission_status": "ENABLED",
"sip": {
"status": "ENABLED | DISABLED (default)",
"servers": [
        {
"hostname": SIP_SERVER_HOSTNAME,
"port": SIP_SERVER_PORT,
"request_uri_user_params": {
"KEY1": "VALUE1",
"KEY2": "VALUE2"
          }
        }
      ]
    }
  }
}
Body parameters

Parameter

Description

Sample Value

status
String
Optional
Enable or disable the Calling API for the given business phone number.
“ENABLED”
“DISABLED”
call_icon_visibility
String
Optional
Configure whether the WhatsApp call button icon displays for users when chatting with the business.
call_hours
JSON object
Optional
Allows you to specify and trigger call settings for incoming calls based on your timezone, business operating hours, and holiday schedules.
Any previously configured values in call_hours will be replaced with the values passed in the request body of this API call.
callback_permission_status
String
Optional
Configure whether a WhatsApp user is prompted with a call permission request after calling your business.
Note: The call permission request is triggered from either a missed or connected call.
“ENABLED”
“DISABLED”
sip
JSON object
Optional
Configure call signaling via signal initiation protocol (SIP).
Note: When SIP is enabled, you cannot use calling related endpoints and will not receive calling related webhooks.
"sip": {
"status": "ENABLED | DISABLED (default)",
"servers": [// one server per app]
     {
"hostname": SIP_SERVER_HOSTNAME
"port": SIP_SERVER_PORT,
"request_uri_user_params": {
"KEY1": "VALUE1", // for cases like TGRP
"KEY2": "VALUE2",
       }
     }
   ]
 }
Parameter details: Calling status
When the status parameter is set to “ENABLED”, calling features are enabled for the business phone number. WhatsApp client applications will render the call button icon in both the business chat and business chat profile.
When the status parameter is set to “DISABLED”, calling features are disabled, and both the business chat and business chat profile do not display the call button icon.
Updates to status will update the call button icon in existing business chats in near real-time when the business phone number is in the WhatsApp user’s contacts.
Otherwise, updates are real-time for a limited number of users in conversation with the business, and are eventually updated for the rest of conversations.
Parameter details: Call button icon visibility
When Calling API features are enabled for a business number, you can still choose whether to show the call button icon or not by using the call_icon_visibility parameter. Note: Disabling call button icon visibility does not disable a WhatsApp user’s ability to make unsolicited calls to your business.
The behavior for supported options is as follows:
DEFAULT
The Call button icon will be displayed in the chat menu bar and the business info page, allowing for unsolicited calls to the business by WhatsApp users.

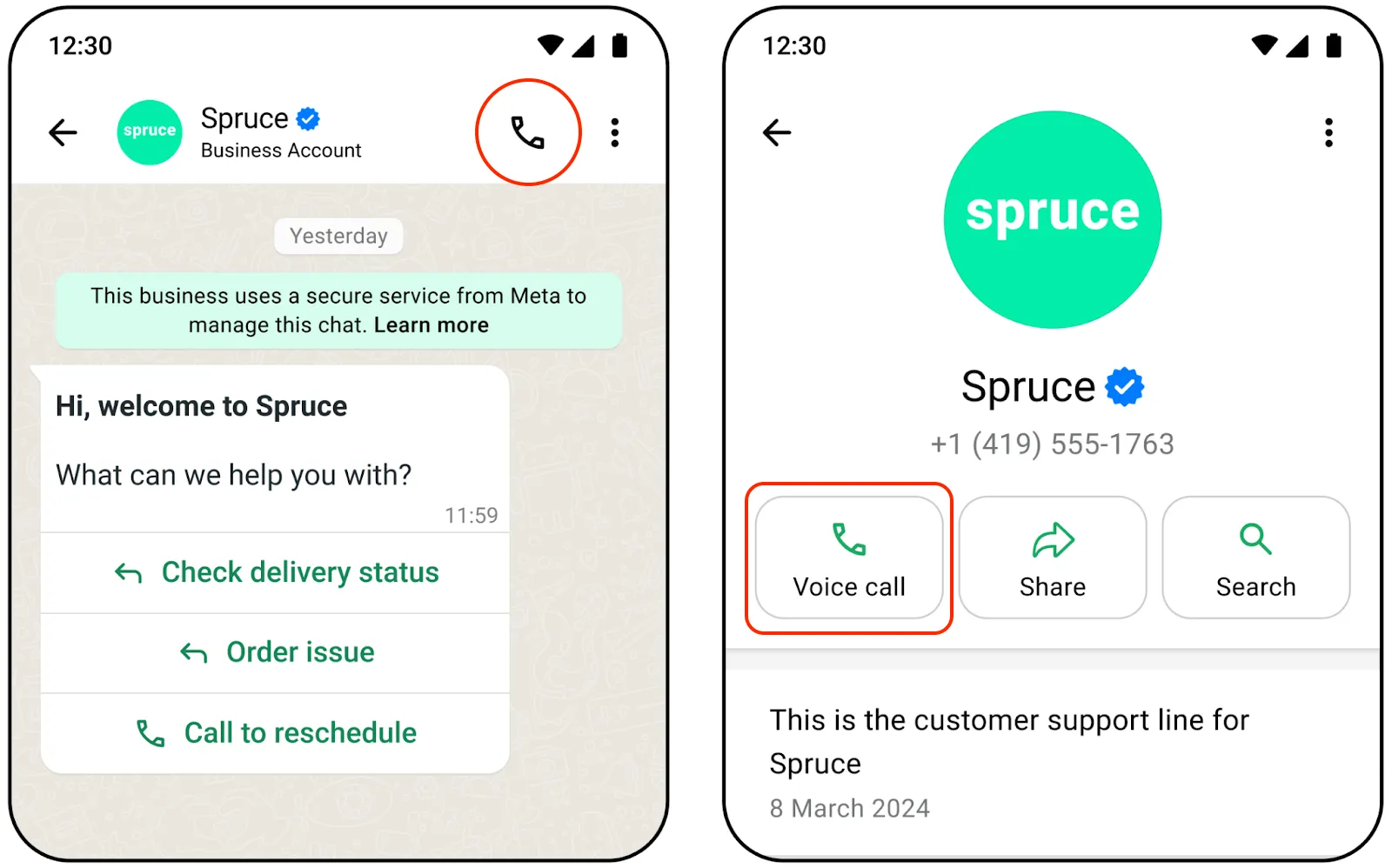

Screenshot showing the call button icon displayed in the WhatsApp chat menu bar and business info page
DISABLE ALL
The call button icon is hidden in the chat menu bar and the business info page, and all other entry points external to the chat are also disabled. Consumers cannot make unsolicited calls to the business.
Your business can still send interactive messages or template messages with a Calling API CTA button.

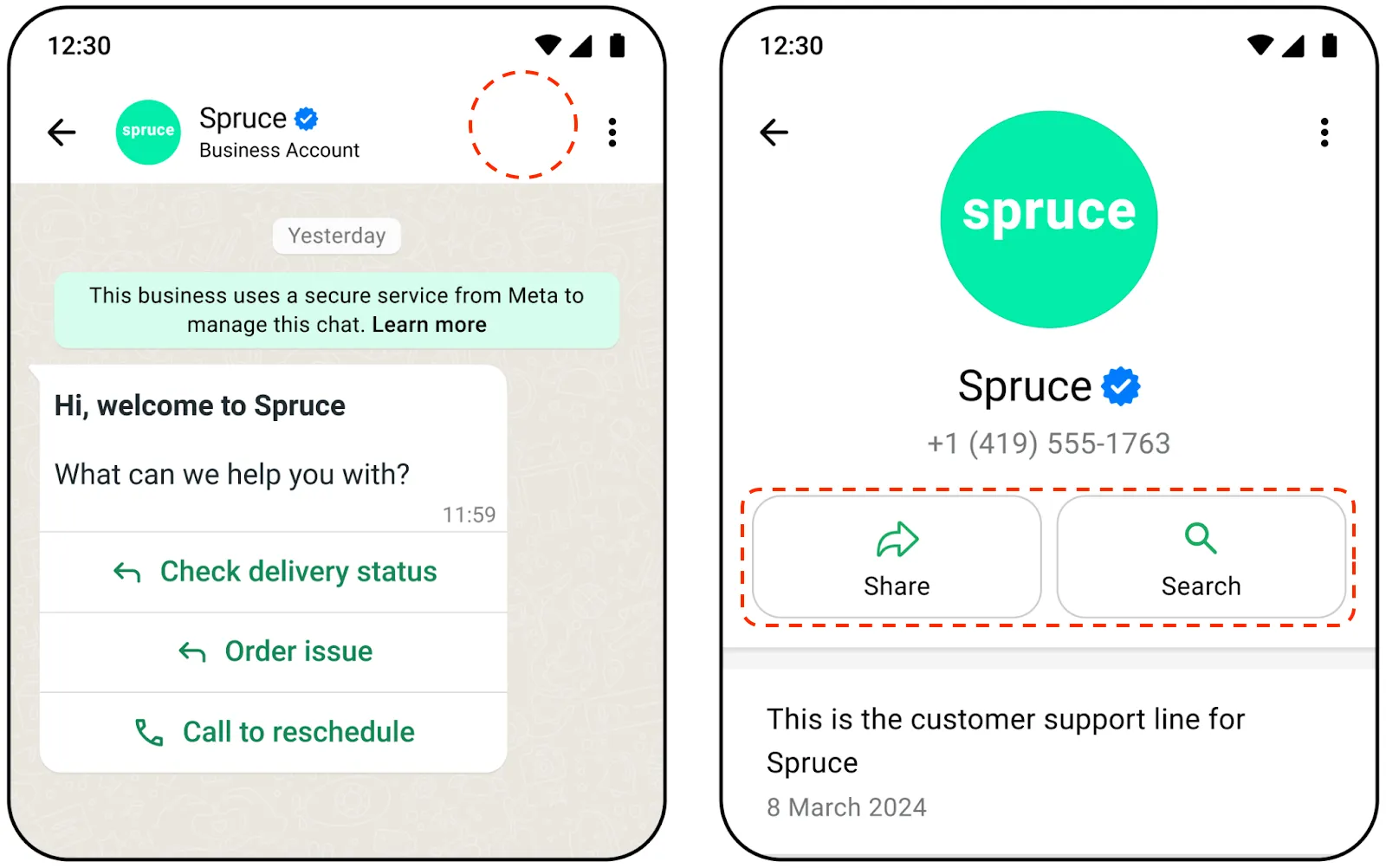

Screenshot showing the WhatsApp chat interface with the call button icon hidden
Callback permissions
Calling a WhatsApp user requires explicit permission from the user. One way to obtain calling permissions is to request permission when a WhatsApp user calls your business.
You can configure the call permission UI to automatically show in the WhatsApp user’s client app when they call your business number. The user may change their permission selection at any time.

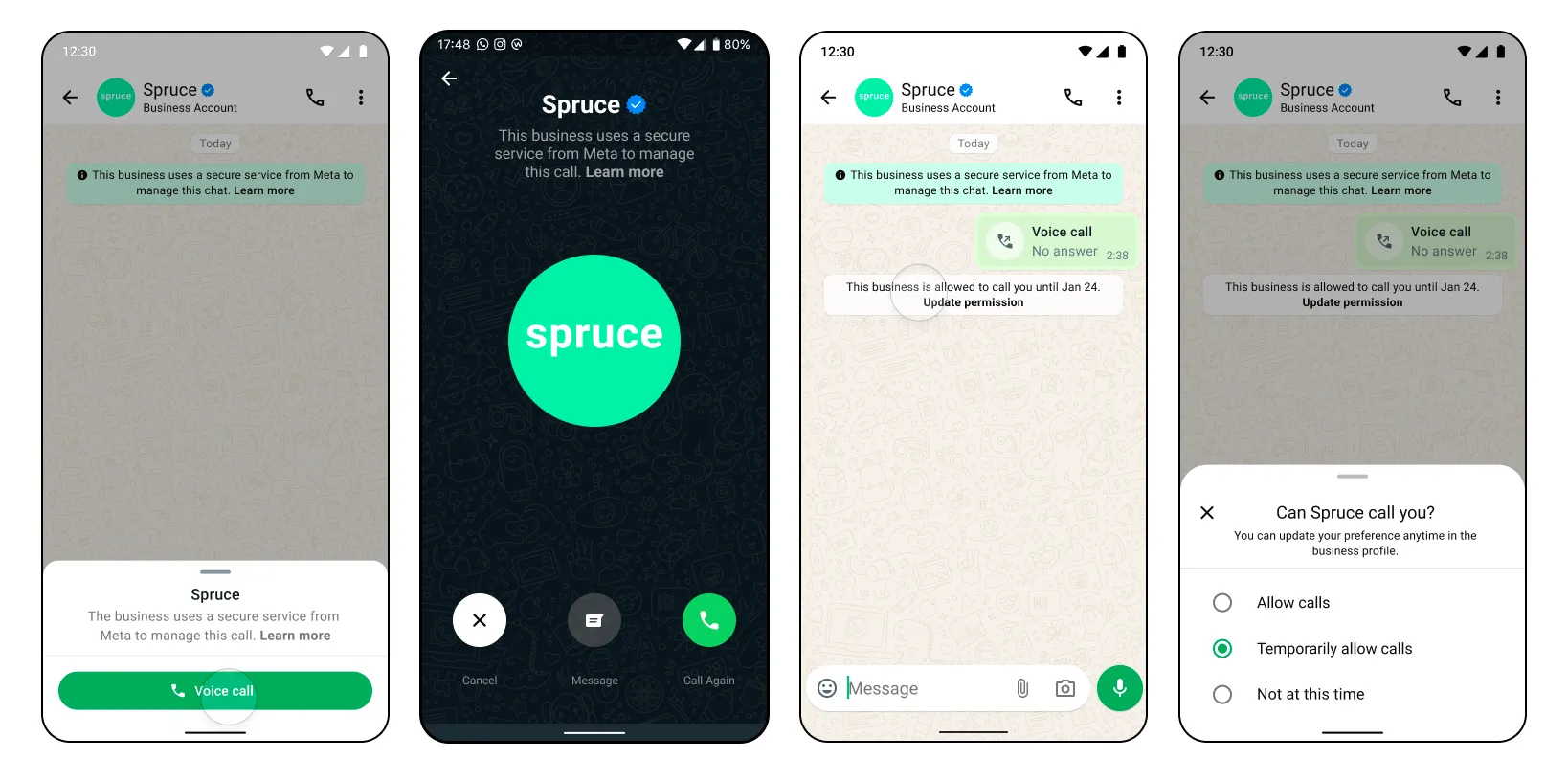

Screenshot showing the WhatsApp call permission request dialog
Call hours
With the call_hours setting, you can specify the timezone, business operating hours, and holiday schedules that will be enforced for all user-initiated calls.
Configuring this setting restricts calls only to available weekly hours you configure. User-initiated calls are unavailable outside of the weekly hours and holiday schedules you set.
The WhatsApp client app will show users an option to chat with the business, or request a callback, if callback_permission_status is ENABLED. The user will also be shown the next available calling slot on the option screen.

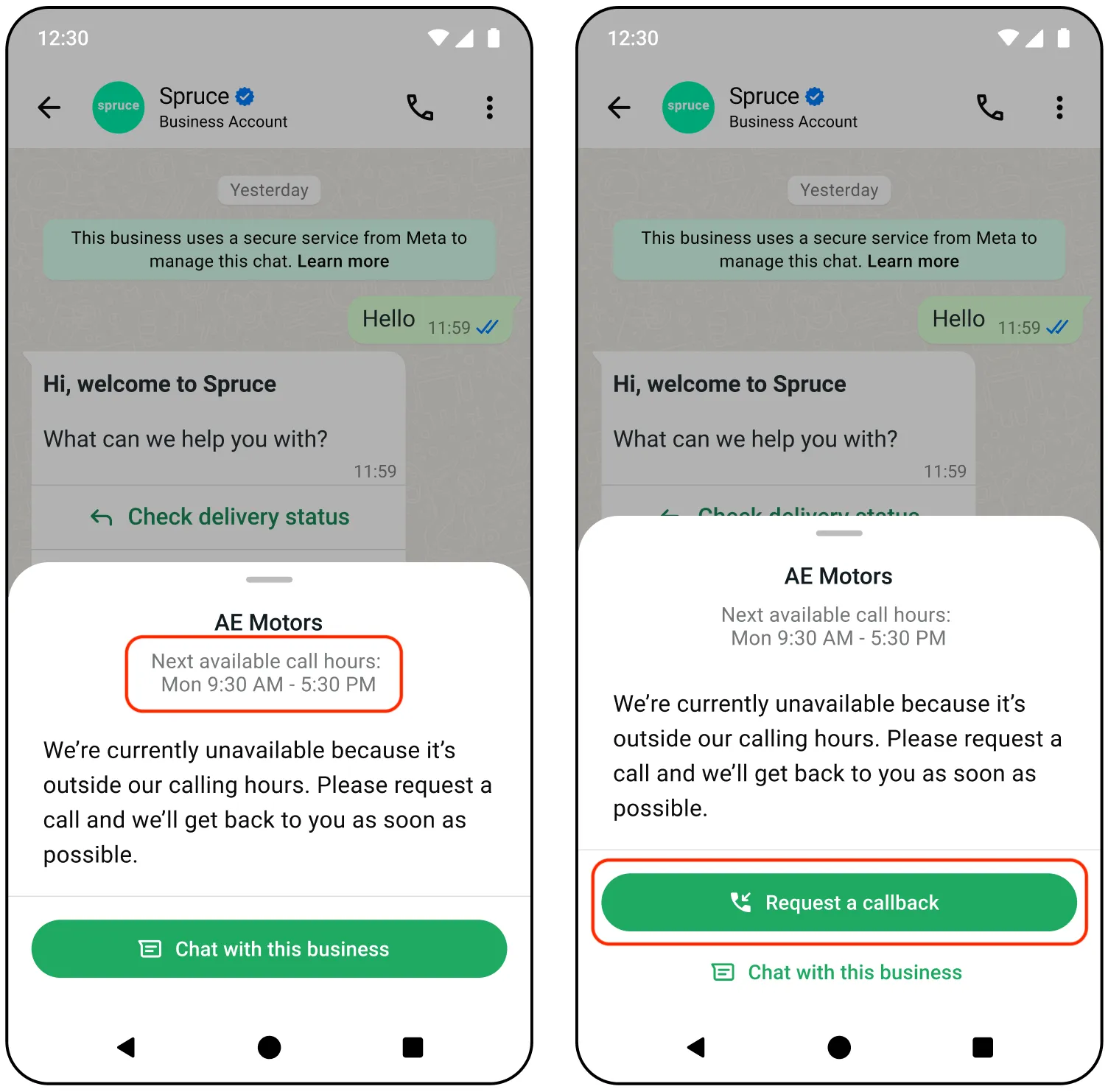

Screenshot showing WhatsApp call hours unavailable screen with callback option
"call_hours": {
"status": "ENABLED",
"timezone_id": "America/Manaus",
"weekly_operating_hours": [
    {
"day_of_week": "MONDAY",
"open_time": "04:00",
"close_time": "10:20"
    },
    {
"day_of_week": "TUESDAY",
"open_time": "01:08",
"close_time": "10:20"
    }
  ],
"holiday_schedule": [
    {
"date": "2026-01-01",
"start_time": "00:00",
"end_time": "23:59"
    }
  ]
}

Parameter

Description

Sample Values

status
String
Required
Enable or disable the call hours for the business.
If call hours are disabled, the business is considered open all 24 hours of the day, 7 days a week.
“ENABLED”
“DISABLED”
timezone_id
String
Required


The timezone that the business is operating within.
“America/Menominee”
“Asia/Singapore”
weekly_operating_hours
List of JSON object
Required


The operating hours schedule for each day of the week.
Each entry is an JSON object with 3 key/value pairs:
day_of_week — (Enum) [Required]
The day of the week.
Can take one of seven values: "MONDAY", “TUESDAY”, “WEDNESDAY”, “THURSDAY”, “FRIDAY”, “SATURDAY”, “SUNDAY”
open_time
close_time — (Integer) [Required]
Opening and closing times represented in 24 hour format, for example "1130" = 11:30AM
    Maximum of 2 entries allowed per day of weekopen_time must be before close_timeOverlapping entries not allowed
    {
    "day_of_week": "MONDAY",
    "open_time": "0400",
    "close_time": "1020"
    },
    {
    "day_of_week":"TUESDAY",
    "open_time": "0108",
    "close_time": "1020"
    }
    ...
    holiday_schedule
    String
    Optional


An optional override to the weekly schedule.
    Up to 20 overrides can be specified.
    Note: If holiday_schedule is not passed in the request, then the existing holiday_schedule will be deleted and replaced with an empty schedule.
    date — (String) [Required]
    Date for which you want to specify the override.
    YYYY-MM-DD format.
    open_time
    close_time — (Integer) [Required]
    Opening and closing times represented in 24 hour format, for example, ”1130” = 11:30AM
      Maximum of 2 entries allowed per day of weekopen_time must be before close_timeOverlapping entries not allowed
      {
      "date": "2026-01-01",
      "start_time": "0000",
      "end_time": "2359",
      }
      ...
      Success response
      {
      "success": true
      }
      Error response
      Possible errors that can occur:
        Permissions/Authorization errorsInvalid statusInvalid schedule for call_hoursHoliday given in call_hours is a past dateTimezone is invalid in call_hoursweekly_operating_hours in call_hours cannot be emptyDate format in holiday_schedule for call_hours is invalidMore than 2 entries not allowed in weekly_operating_hours schedule in call_hoursOverlapping schedule in call_hours is not allowed
        Get phone number calling settings
        Call the Get Phone Number Settings endpoint to retrieve Calling API settings on an individual business phone number you designate in the request syntax.
        This endpoint can return information for other Cloud API feature settings.
        Request syntax
        POST /<PHONE_NUMBER_ID>/settings
        Endpoint parameters

Parameter

Description

Sample Value

        <PHONE_NUMBER_ID>
        Integer
        Required


The business phone number for which you are getting Calling API settings.
        +12784358810
        App permission required
        whatsapp_business_management: Advanced access is required to use the API for end business clients
        Response body
        {
        "calling": {
        "status": "ENABLED",
        "call_icon_visibility": "DEFAULT",
        "call_hours": {
        "status": "ENABLED",
        "timezone_id": "America/Manaus",
        "weekly_operating_hours": [
                {
        "day_of_week": "MONDAY",
        "open_time": "0400",
        "close_time": "1020"
                },
                {
        "day_of_week": "TUESDAY",
        "open_time": "0108",
        "close_time": "1020"
                }
              ],
        "holiday_schedule": [
                {
        "date": "2026-01-01",
        "start_time": "0000",
        "end_time": "2359"
                }
              ]
            },
        "callback_permission_status": "ENABLED",
        "sip": {
        "status": "ENABLED | DISABLED (default)",
        "servers": [
                {
        "hostname": SIP_SERVER_HOSTNAME,
        "port": SIP_SERVER_PORT,
        "request_uri_user_params": {
        "KEY1": "VALUE1",
        "KEY2": "VALUE2"
                  }
                }
              ]
            }
          }
        }
        Include SIP user password
        Optionally, you can include SIP user credentials in your response body by adding the SIP credentials query parameter in the POST request:
        POST /<PHONE_NUMBER_ID>/settings?include_sip_credentials=true
        Where the response will look like this:
        {
        "calling": {
            ... // other calling api settings
        "sip": {
        "status": "ENABLED",
        "servers": [
                {
        "hostname": "sip.example.com",
        "sip_user_password": "{SIP_USER_PASSWORD}"
                }
              ]
            }
          }
        }
        Response details
        The GET /<PHONE_NUMBER_ID>/settings endpoint returns Calling API settings, along with other configuration information for your WhatsApp business phone number.
        Error response
        Possible errors that can occur:
          Permissions/Authorization errors
          Pre-accept call
          When you pre-accept an inbound call, you allow the calling media connection to be established before attempting to send call media through the connection.
          When you then call the accept call endpoint, media begins flowing immediately since the connection has already been established.
          Pre-accepting calls is recommended because it facilitates faster connection times and avoids audio clipping issues.
          There is about 30 to 60 seconds after the Call Connect webhook is sent for the business to accept the phone call. If the business does not respond, the call is terminated on the WhatsApp user side with a “Not Answered” notification and a Terminate Webhook is delivered back to you.
          Note: Since the WebRTC connection is established before calling the Accept Call endpoint, make sure to flow the call media only after you receive a 200 OK response back.
          If call media flows too early, the caller will miss the first few words of the call. If call media flows too late, callers will hear silence.
          Request syntax
          POST <PHONE_NUMBER_ID>/calls

Placeholder

Description

Sample Value

          <PHONE_NUMBER_ID>
          Integer
          Required


The business phone number which you are using Calling API features from.
          +12784358810
          Request body
          {"messaging_product":"whatsapp","call_id":"wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh","action":"pre_accept","session":{"sdp_type":"answer","sdp":"<<RFC 8866 SDP>>"}}
          Body parameters

Parameter

Description

Sample Value

          call_id
          String
          Required


The ID of the phone call.
          For inbound calls, you receive a call ID from the Call Connect webhook when a WhatsApp user initiates the call.
          “wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh”
          action
          String
          Optional


The action being taken on the given call ID.
          Values can be connect | pre_accept | accept | reject | terminate
          “pre_accept”
          session
          JSON object
          Optional


Contains the session description protocol (SDP) type and description language.
          Requires two values:
          sdp_type — (String) Required
          “offer”, to indicate SDP offer
          sdp — (String) Required
          The SDP info of the device on the other end of the call. The SDP must be compliant with RFC 8866⁠.
          "session":{"sdp_type":"offer","sdp":"<<RFC 8866 SDP>>"}
          Success response
          {"messaging_product":"whatsapp","success":true}
          Error response
          Possible errors that can occur:
            Invalid call-idInvalid phone-number-idError related to your payment methodInvalid Connection info, for example, sdp, iceAccept/Reject an already In Progress/Completed/Failed callPermissions/Authorization errors
            Accept call
            Use this endpoint to connect to a call by providing a call agent’s SDP.
            You have about 30 to 60 seconds after the Call Connect Webhook is sent to accept the phone call. If your business does not respond, the call is terminated on the WhatsApp user side with a “Not Answered” notification and a Terminate Webhook is delivered back to you.
            Request syntax
            POST <PHONE_NUMBER_ID>/calls

Placeholder

Description

Sample Value

            <PHONE_NUMBER_ID>
            Integer
            Required


The business phone number which you are using Calling API features from.
            +12784358810
            Request body
            {"messaging_product":"whatsapp","call_id":"wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh","action":"accept","session":{"sdp_type":"answer","sdp":"<<RFC 8866 SDP>>"},"biz_opaque_callback_data":"random_string"}
            Body parameters

Parameter

Description

Sample Value

            call_id
            String
            Required


The ID of the phone call.
            For inbound calls, you receive a call ID from the Call Connect webhook when a WhatsApp user initiates the call.
            “wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh”
            action
            String
            Optional


The action being taken on the given call ID.
            Values can be connect | pre_accept | accept | reject | terminate
            “accept”
            session
            JSON object
            Optional


Contains the session description protocol (SDP) type and description language.
            Requires two values:
            sdp_type — (String) Required
            “offer”, to indicate SDP offer
            sdp — (String) Required
            The SDP info of the device on the other end of the call. The SDP must be compliant with RFC 8866⁠.
            "session":{"sdp_type":"offer","sdp":"<<RFC 8866 SDP>>"}
            biz_opaque_callback_data
            String
            Optional


An arbitrary string you can pass in that is useful for tracking and logging purposes.
            Any app subscribed to the “calls” webhook field on your WhatsApp Business Account can receive this string, as it is included in the calls object within the subsequent Terminate webhook payload.
            Cloud API does not process this field, it just returns it as part of the Terminate webhook.
            Maximum 512 characters
            “8huas8d80nn”
            Success response
            {"messaging_product":"whatsapp","success":true}
            Error response
            Possible errors that can occur:
              Invalid call-idInvalid phone-number-idError related to your payment methodInvalid Connection info, for example, sdp, ice, or other connection parametersAccept/Reject an already In Progress/Completed/Failed callPermissions/Authorization errorsSDP answer provided in accept does not match the SDP answer given in the Pre-Accept endpoint for the same call-id
              Reject call
              Use this endpoint to reject a call.
              You have about 30 to 60 seconds after the Call Connect webhook is sent to accept the phone call. If the business does not respond, the call is terminated on the WhatsApp user side with a “Not Answered” notification and a Terminate Webhook is delivered back to you.
              Request syntax
              POST <PHONE_NUMBER_ID>/calls

Placeholder

Description

Sample Value

              <PHONE_NUMBER_ID>
              Integer
              Required


The business phone number which you are using Calling API features from.
              +12784358810
              Request body
              {"messaging_product":"whatsapp","call_id":"wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh","action":"reject"}
              Body parameters

Parameter

Description

Sample Value

              call_id
              String
              Required


The ID of the phone call.
              For inbound calls, you receive a call ID from the Call Connect webhook when a WhatsApp user initiates the call.
              “wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh”
              action
              String
              Optional


The action being taken on the given call ID.
              Values can be connect | pre_accept | accept | reject | terminate
              “reject”
              Success response
              {"messaging_product":"whatsapp","success":true}
              Error response
              Possible errors that can occur:
                Invalid call-idInvalid phone-number-idAccept/Reject an already In Progress/Completed/Failed callPermissions/Authorization errors
                Initiate call
                Use this endpoint to initiate a call to a WhatsApp user by providing a phone number and a WebRTC call offer.
                Request syntax
                POST <PHONE_NUMBER_ID>/calls

Placeholder

Description

Sample Value

                <PHONE_NUMBER_ID>
                Integer
                Required


The business phone number from which you are initiating a new call.
                +12784358810
                Request body
                {"messaging_product":"whatsapp","to":"14085551234","action":"connect","session":{"sdp_type":"offer","sdp":"<<RFC 8866 SDP>>"},"biz_opaque_callback_data":"0fS5cePMok"}
                Body parameters

Parameter

Description

Sample Value

                to
                Integer
                Required


The number being called (callee)
                “17863476655”
                action
                String
                Required


The action being taken on the given call ID.
                Values can be connect | pre_accept | accept | reject | terminate
                “connect”
                session
                JSON object
                Optional


Contains the session description protocol (SDP) type and description language.
                Requires two values:
                sdp_type — (String) Required
                “offer”, to indicate SDP offer
                sdp — (String) Required
                The SDP info of the device on the other end of the call. The SDP must be compliant with RFC 8866⁠.
                "session":{"sdp_type":"offer","sdp":"<<RFC 8866 SDP>>"}
                biz_opaque_callback_data
                String
                Optional


An arbitrary string you can pass in that is useful for tracking and logging purposes.
                Any app subscribed to the “calls” webhook field on your WhatsApp Business Account can receive this string, as it is included in the calls object within the subsequent Call Terminate Webhook payload.
                Cloud API does not process this field.
                Maximum 512 characters
                “0fS5cePMok”
                Success response
                {"messaging_product":"whatsapp","calls":[{"id":"wacid.ABGGFjFVU2AfAgo6V",}]}
                Error response
                Possible errors that can occur:
                  Invalid phone-number-idPermissions/Authorization errorsRequest format validation errors, for example connection info, sdp, iceSDP validation errors
                  Terminate call
                  Use this endpoint to terminate an active call.
                  This must be done even if there is an RTCP BYE packet in the media path. Ending the call this way also ensures pricing is more accurate.
                  When the WhatsApp user terminates the call, you do not have to call this endpoint. Once the call is successfully terminated, a Call Terminate Webhook will be sent to you.
                  Request syntax
                  POST <PHONE_NUMBER_ID>/calls

Parameter

Description

Sample Value

                  <PHONE_NUMBER_ID>
                  Integer
                  Required


The business phone number which you are terminating a call from.
                  18274459827
                  Request body
                  {"messaging_product":"whatsapp","call_id":"wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh","action":"terminate"}
                  Body parameters

Parameter

Description

Sample Value

                  call_id
                  String
                  Required


The ID of the phone call.
                  For inbound calls, you receive a call ID from the Call Connect webhook when a WhatsApp user initiates the call.
                  “wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh”
                  action
                  String
                  Required


The action being taken on the given call ID.
                  Values can be connect | pre_accept | accept | reject | terminate
                  “terminate”
                  Success response
                  {"messaging_product":"whatsapp","success":true}
                  Error response
                  Possible errors that can occur:
                    Invalid call idInvalid phone-number-idThe WhatsApp user has already terminated the callReject call is already in progressPermissions/Authorization errors
                    Get current call permission state
                    Use this endpoint to get the call permission state for a business phone number with a single WhatsApp user phone number.
                    Request syntax
                    GET /<PHONE_NUMBER_ID>/call_permissions?user_wa_id=<CONSUMER_WHATSAPP_ID>
                    Request parameters

Parameter

Description

Sample Value

                    <PHONE_NUMBER_ID>
                    String
                    Required


The business phone number you are fetching permissions against.
                    +18762639988
                    <CONSUMER_WHATSAPP_ID>
                    Integer
                    Required


The phone number of the WhatsApp user who you are requesting call permissions from.
                    +13057765456
                    Response body
                    {"messaging_product":"whatsapp","permission":{"status":"temporary","expiration_time":1745343479},"actions":[{"action_name":"send_call_permission_request","can_perform_action":true,"limits":[{"time_period":"PT24H","max_allowed":1,"current_usage":0,},{"time_period":"P7D","max_allowed":2,"current_usage":1,}]},{"action_name":"start_call","can_perform_action":false,"limits":[{"time_period":"PT24H","max_allowed":5,"current_usage":5,"limit_expiration_time":1745622600,}]}}}
                    Response parameters

Parameter

Description

                    permission
                    JSON Object
                    The permission object contains two values:
                    status (String) — The current status of the permission.
                    Can be either:
                      “no_permission”"temporary"
                      expiration (Integer) — The Unix time at which the permission will expire in UTC timezone.
                      actions
                      JSON Object
                      A list of actions a business phone number may undertake to facilitate a call permission or a business initiated call.
                      Current actions are:
                      send_call_permission_request: Represents the action of sending new call permissions request messages to the WhatsApp user.
                      start_call: Represents the action of establishing a new call with the WhatsApp user. Establishing a new call means that the call was successfully picked up by the consumer.
                      For example, send_call_permission_request having a can_perform_action of  true means that your business can send a call permission request to the WhatsApp user in question
                      can_perform_action (Boolean) —
                      A flag indicating whether the action can be performed now, taking into account all limits.
                      limits
                      JSON Object
                      A list of time-bound restrictions for the given action_name.
                      Each action_name has 1 or more restrictions depending on the timeframe.
                      For example, a business can only  send 2 permission requests in a 24-hour period.
                      limits contains the following fields:
                      time_period (String) — The span of time in which the limit applies, represented in the ISO 8601 format.
                      max_allowed (Integer) — The maximum number of actions allowed within the specified time period.
                      current_usage (Integer) — The current number of actions the business has taken within the specified time period.
                      limit_expiration_time (Integer) — The Unix time at which the limit will expire in UTC timezone.
                      If current_usage is under the max allowed for the limit, this field won’t be present.
                      Error response
                      Possible errors that can occur:
                        Invalid phone-number-idIf the consumer phone number is uncallable, the api response will be no_permission.Permissions/Authorization errors.Rate limit reached. A maximum of 5 requests in a 1 second window can be made to the API.Calling is not enabled for the business phone number.
                        Calling API Webhooks
                        Call Connect webhook
                        A webhook notification is sent in near real-time when a call initiated by your business is ready to be connected to the WhatsApp user (an SDP Answer).
                        Critically, the webhook contains information required to establish a call connection via WebRTC.
                        Once you receive the Call Connect webhook, you can apply the SDP Answer received in the webhook to your WebRTC stack in order to initiate the media connection.
                        {"object":"whatsapp_business_account","entry":[{"id":"<WHATSAPP_BUSINESS_ACCOUNT_ID>","changes":[{"value":{"messaging_product":"whatsapp","metadata":{"display_phone_number":"16315553601","phone_number_id":"<PHONE_NUMBER_ID>"},"contacts":[{"profile":{"name":"<CALLEE_NAME>"},"wa_id":"16315553602"}],"calls":[{"id":"wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh","to":"16315553601","from":"16315553602","event":"connect","timestamp":"1671644824","direction":"BUSINESS_INITIATED","session":{"sdp_type":"answer","sdp":"<<RFC 8866 SDP>>"}}]},"field":"calls"}]}]}
                        Webhook values for "calls"

Placeholder

Description

                        id
                        String
                        A unique ID for the call
                        to
                        Integer
                        The number being called (callee)
                        from
                        Integer
                        The number of the caller
                        event
                        Integer
                        The calling event that this webhook is notifying the subscriber of
                        timestamp
                        Integer
                        The UNIX timestamp of the webhook event
                        direction
                        String
                        The direction of the call being made.
                        Can contain either:
                        BUSINESS_INITIATED, for calls initiated by your business.
                        USER_INITIATED, for calls initiated by a WhatsApp user.
                        session
                        JSON object
                        Optional


Contains the session description protocol (SDP) type and description language.
                        Requires two values:
                        sdp_type — (String) Required
                        “offer”, to indicate SDP offer
                        sdp — (String) Required
                        The SDP info of the device on the other end of the call. The SDP must be compliant with RFC 8866⁠.
                        contacts
                        JSON object
                        Profile information of the callee.
                        Contains two values:
                        name — The WhatsApp profile name of the callee.
                        wa_id — The WhatsApp ID of the callee.
                        Call status webhook
                        This webhook is sent during the following calling events:
                          Ringing: When the WhatsApp user’s client device begins ringingAccepted: When the WhatsApp user accepts the callRejected: When the call is rejected by the WhatsApp user
                          The Webhook structure here is similar to the Status webhooks used for the Cloud API messages.
                          {"object":"whatsapp_business_account","entry":[{"id":"<WHATSAPP_BUSINESS_ACCOUNT_ID>","changes":[{"value":{"messaging_product":"whatsapp","metadata":{"display_phone_number":"16315553601","phone_number_id":"<PHONE_NUMBER_ID>",},"statuses":[{"id":"wacid.ABGGFjFVU2AfAgo6V","timestamp":"1671644824","type":"call""status":"[RINGING|ACCEPTED|REJECTED]","recipient_id":"163155536021","biz_opaque_callback_data":"random_string",}]},"field":"calls"}]}]}
                          Webhook values for "statuses"

Placeholder

Description

                          id
                          String
                          A unique ID for the call
                          timestamp
                          Integer
                          The UNIX timestamp of the webhook event
                          recipient_id
                          Integer
                          The phone number of the WhatsApp user receiving the call
                          status
                          Integer
                          The current call status.
                          Possible values:
                          RINGING: Business initiated call is ringing the user
                          ACCEPTED: Business initiated call is accepted by the user
                          REJECTED: Business initiated call is rejected by the user
                          biz_opaque_callback_data
                          String
                          Arbitrary string your business passes into the call for tracking and logging purposes.
                          Will only be returned if provided through Initiate New Call API requests
                          Call terminate webhook
                          A webhook notification is sent whenever the call has been terminated for any reason, such as when the WhatsApp user hangs up, or when the business calls the POST /<PHONE_NUMBER_ID>/calls endpoint with an action of terminate or reject.
                          {"object":"whatsapp_business_account","entry":[{"id":"<WHATSAPP_BUSINESS_ACCOUNT_ID>","changes":[{"value":{"messaging_product":"whatsapp","metadata":{"display_phone_number":"16505553602","phone_number_id":"<PHONE_NUMBER_ID>",},"calls":[{"id":"wacid.ABGGFjFVU2AfAgo6V-Hc5eCgK5Gh","to":"16315553601","from":"16315553602","event":"terminate""direction":"BUSINESS_INITIATED","biz_opaque_callback_data":"random_string","timestamp":"1671644824","status":[FAILED | COMPLETED],"start_time":"1671644824","end_time":"1671644944","duration":120}],"errors":[{"code": INT_CODE,"message":"ERROR_TITLE","href":"ERROR_HREF","error_data":{"details":"ERROR_DETAILS"}}]},"field":"calls"}]}]}
                          Webhook values for "calls"

Placeholder

Description

                          id
                          String
                          A unique ID for the call
                          to
                          Integer
                          The number being called (callee)
                          from
                          Integer
                          The number of the caller
                          event
                          Integer
                          The calling event that this webhook is notifying the subscriber of
                          timestamp
                          Integer
                          The UNIX timestamp of the webhook event
                          direction
                          String
                          The direction of the call being made.
                          Can contain either:
                          BUSINESS_INITIATED, for calls initiated by your business.
                          USER_INITIATED, for calls initiated by a WhatsApp user.
                          start_time
                          Integer
                          The UNIX timestamp of when the call started.
                          Only present when the call was picked up by the other party.
                          end_time
                          Integer
                          The UNIX timestamp of when the call ended.
                          Only present when the call was picked up by the other party.
                          duration
                          Integer
                          Duration of the call in seconds.
                          Only present when the call was picked up by the other party.
                          biz_opaque_callback_data
                          String
                          Arbitrary string your business passes into the call for tracking and logging purposes.
                          Will only be returned if provided through New Call API requests or Accept Call requests
                          User calling permission request webhook
                          This webhook is sent back after requesting user calling permissions.
                          The webhook changes depending on if the user:
                            accepts or rejects the requestgives permission by responding to a request or by calling the business
                            Webhook sample
                            {..."messages":[{"from":"{customer_phone_number}","id":"wamid.sH0kFlaCGg0xcvZbgmg90lHrg2dL","timestamp":"{timestamp}","context":{"from":"{customer_phone_number}","id":"wacid.gBGGFlaCmZ9plHrf2Mh-o"},"interactive":{"type":"call_permission_reply","call_permission_reply":{"response":"accept","is_permanent":false,"expiration_timestamp":"{timestamp}","response_source":"[user_action|automatic]"}}],...}
                            Webhook sample (with permanent permissions)
                            "messages":[{"from":"{customer_phone_number}","id":"wamid.sH0kFlaCGg0xcvZbgmg90lHrg2dL","timestamp":"{timestamp}","context":{"from":"{customer_phone_number}","id":"wacid.gBGGFlaCmZ9plHrf2Mh-o"},"interactive":{"type":"call_permission_reply","call_permission_reply":{"response":"accept","is_permanent":false,"expiration_timestamp":"{timestamp}","response_source":"[user_action|automatic]"}}],...}
                            Webhook values

Placeholder

Description

                            customer_phone_number
                            String
                            The phone number of the customer
                            context.id
                            String
                            Can be either of two values
                              Message ID of the permission request message sent by the business to the customer number. Shows when a permission decision is made by the user in response to a call permission request.Call ID of the missed call placed by the business to the customer number. Shows when callback permission is enabled in settings and the user calls the business.
                              response
                              String
                              The WhatsApp users response to the call permission request message
                              Can be accept or reject
                              expiration_timestamp
                              Integer
                              Time in seconds when this call permission expires if the WhatsApp user approved it
                              response_source
                              String
                              The source of this permission
                              Possible values for accepted call permissions are:
                                user_action: User approved or rejected the permissionautomatic: An automatic permission approval due to the WhatsApp user initiating the call
                                SDP overview and sample SDP structures
                                Session Description Protocol (SDP) is a text-based format that describes multimedia session characteristics, such as voice and video calls, in real-time communication applications. SDP provides a standardized way to convey information about the session’s media streams, including the type of media, codecs, protocols, and other parameters necessary for establishing and managing the session.
                                In the context of WebRTC, SDP is used to negotiate the media parameters between the sender and receiver, enabling them to agree on the specifics of the media exchange.
                                Business-initiated sample SDP structures
                                Sample SDP offer structure
                                v=0
o=-36261663187458529552 IN IP4 127.0.0.1
s=-
t=00
a=group:BUNDLE 0
a=extmap-allow-mixed
a=msid-semantic: WMS d8b26053-4474-4eb7-b3c3-c93d6c8c9b2e
m=audio 9 UDP/TLS/RTP/SAVPF 11163908110126
c=IN IP4 0.0.0.0
a=rtcp:9 IN IP4 0.0.0.0
a=ice-ufrag:4g1c
a=ice-pwd:qY/Bb+jQzg5ICn6X4fhJQetk
a=ice-options:trickle
a=fingerprint:sha-25635:47:24:24:9F:93:C4:3E:DB:37:7F:BB:ED:F8:20:B5:AD:AC:DC:35:C2:7D:67:EE:6C:35:54:DF:A6:00:5C:4A
a=setup:actpass
a=mid:0
a=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level
a=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time
a=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01
a=extmap:4 urn:ietf:params:rtp-hdrext:sdes:mid
a=sendrecv
a=msid:d8b26053-4474-4eb7-b3c3-c93d6c8c9b2e 5b4d3d96-ea9b-44a8-87e6-11a1ad21a3bc
a=rtcp-mux
a=rtpmap:111 opus/48000/2
a=rtcp-fb:111 transport-cc
a=fmtp:111 minptime=10;useinbandfec=1
a=rtpmap:63 red/48000/2
a=fmtp:63111/111
a=rtpmap:9 G722/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:110 telephone-event/48000
a=rtpmap:126 telephone-event/8000
a=ssrc:2220762577 cname:w/zwpg3jXNiTFTdZ
a=ssrc:2220762577 msid:d8b26053-4474-4eb7-b3c3-c93d6c8c9b2e 5b4d3d96-ea9b-44a8-87e6-11a1ad21a3bc
                                Sample SDP answer structure
                                v=0
o=-7418078391020537252 IN IP4 127.0.0.1
s=-
t=00
a=group:BUNDLE 0
a=extmap-allow-mixed
a=msid-semantic: WMS 798a9670-c0d6-47a8-925e-5f082ef4d8a0
a=ice-lite
m=audio 3482 UDP/TLS/RTP/SAVPF 111908110126
c=IN IP4 31.13.65.130
a=rtcp:9 IN IP4 0.0.0.0
a=candidate:27549362801 udp 211393715131.13.65.1303482 typ host generation 0 network-cost 50 ufrag JHqAXFH4HcAY/8
a=candidate:15814963991 udp 21139397112a03:2880:f211:d1:face:b00c:0:699c3482 typ host generation 0 network-cost 50 ufrag JHqAXFH4HcAY/8
a=ice-ufrag:JHqAXFH4HcAY/8
a=ice-pwd:dNNMmR8wUcGezvfBZOO0Qgcwl2m86GP/
a=ice-options:trickle
a=fingerprint:sha-2569C:97:5C:4C:A9:BE:9E:2F:06:94:F5:BB:38:2C:A1:29:B5:69:B8:FA:94:10:56:1D:0B:5D:80:28:C1:FD:F0:F6
a=setup:active
a=mid:0
a=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level
a=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time
a=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01
a=sendrecv
a=rtcp-mux
a=rtpmap:111 opus/48000/2
a=rtcp-fb:111 transport-cc
a=fmtp:111 minptime=10;useinbandfec=1
a=rtpmap:9 G722/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:110 telephone-event/48000
a=rtpmap:126 telephone-event/8000
a=ssrc:3407645770 cname:bg8KQDoIk2UJa6sf
a=ssrc:3407645770 msid:798a9670-c0d6-47a8-925e-5f082ef4d8a0 audio#nuxVMf9EAJX
a=ssrc:3407645770 mslabel:798a9670-c0d6-47a8-925e-5f082ef4d8a0
a=ssrc:3407645770 label:audio#nuxVMf9EAJX
                                User-initiated sample SDP structures
                                Sample SDP offer structure
                                v=0
o=-76025637897899450802 IN IP4 127.0.0.1
s=-
t=00
a=group:BUNDLE audio
a=msid-semantic: WMS 6932bc1c-db1a-4abe-b437-0c4168be8a13
a=ice-lite
m=audio 40012 UDP/TLS/RTP/SAVPF 111126
c=IN IP4 31.13.65.60
a=rtcp:9 IN IP4 0.0.0.0
a=candidate:19726373201 udp 211393715131.13.65.6040012 typ host generation 0 network-cost 50 ufrag 6k2qP1R6kBfI/2
a=candidate:16522627911 udp 21139397112a03:2880:f211:cf:face:b00c:0:644340012 typ host generation 0 network-cost 50 ufrag 6k2qP1R6kBfI/2
a=ice-ufrag:6k2qP1R6kBfI/2
a=ice-pwd:UApvJw3NcwFRDvIMKdM0vWCdlXah25E9
a=fingerprint:sha-2561B:B6:6B:40:A5:0B:8C:75:0D:8C:CB:90:2F:99:74:1E:26:45:AE:AF:45:C1:51:60:8F:73:C9:2D:10:6D:8A:88
a=setup:actpass
a=mid:audio
a=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level
a=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time
a=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01
a=sendrecv
a=rtcp-mux
a=rtpmap:111 opus/48000/2
a=rtcp-fb:111 transport-cc
a=fmtp:111 minptime=10;useinbandfec=1
a=rtpmap:126 telephone-event/8000
a=ssrc:4208138518 cname:gAXq2V9TKltrnapv
a=ssrc:4208138518 msid:6932bc1c-db1a-4abe-b437-0c4168be8a13 audio#R5wfXFcdmT6
a=ssrc:4208138518 mslabel:6932bc1c-db1a-4abe-b437-0c4168be8a13
a=ssrc:4208138518 label:audio#R5wfXFcdmT6
                                Sample SDP answer structure
                                v=0
o=-28226442481446439332 IN IP4 127.0.0.1
s=-
t=00
a=group:BUNDLE audio
a=msid-semantic: WMS eb909cf0-87f0-4358-a4c9-7861680d9431
m=audio 9 UDP/TLS/RTP/SAVPF 111126
c=IN IP4 0.0.0.0
a=rtcp:9 IN IP4 0.0.0.0
a=ice-ufrag:X1ho
a=ice-pwd:7fJSbV2N5qWiA5QiDKwK3vuh
a=fingerprint:sha-2562E:35:9F:21:9E:63:72:E5:42:74:76:2D:B3:70:F7:CB:24:14:9B:14:52:71:05:48:DA:4D:67:31:09:58:2A:ED
a=setup:active
a=mid:audio
a=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level
a=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time
a=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01
a=sendrecv
a=rtcp-mux
a=rtpmap:111 opus/48000/2
a=rtcp-fb:111 transport-cc
a=fmtp:111 minptime=10;useinbandfec=1
a=rtpmap:126 telephone-event/8000
a=ssrc:330833028 cname:EDc1JutBl8rwHQc2
a=ssrc:330833028 msid:eb909cf0-87f0-4358-a4c9-7861680d9431 ea478c16-d9f7-493c-8cec-19bfac750a36
                                Sample cURL requests
                                New call
                                curl -i -X POST 'https://graph.facebook.com/v14.0/1234567890/calls' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer EAADUMAze4GIBO1B7B.....<REPLACE_WITH_YOUR_TOKEN>' \
-d '{
   "messaging_product": "whatsapp",
   "to": "14085550000",
   "session": {
       "sdp": "v=0\r\no=- 7669997803033704573 2 IN IP4 127.0.0.1\r\ns=-\r\nt=0 0\r\na=group:BUNDLE 0\r\na=extmap-allow-mixed\r\na=msid-semantic: WMS 3c28addc-03b7-4170-b5cd-535bfe767e75\r\nm=audio 9 UDP/TLS/RTP/SAVPF 111 63 9 0 8 110 126\r\nc=IN IP4 0.0.0.0\r\na=rtcp:9 IN IP4 0.0.0.0\r\na=ice-ufrag:6O0H\r\na=ice-pwd:TYCbtfOrBMPpfxFRgSbYnuTI\r\na=ice-options:trickle\r\na=fingerprint:sha-256 9F:45:2C:A8:C3:C0:CC:9B:59:4F:D1:02:56:52:FA:36:00:BE:C0:79:87:B3:D9:9C:3E:BF:60:98:25:B4:26:FC\r\na=setup:active\r\na=mid:0\r\na=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level\r\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\r\na=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\r\na=extmap:4 urn:ietf:params:rtp-hdrext:sdes:mid\r\na=sendrecv\r\na=msid:3c28addc-03b7-4170-b5cd-535bfe767e75 38c455bc-3727-4129-b336-8cd2c6a68486\r\na=rtcp-mux\r\na=rtcp-rsize\r\na=rtpmap:111 opus/48000/2\r\na=rtcp-fb:111 transport-cc\r\na=fmtp:111 minptime=10;useinbandfec=1\r\na=rtpmap:63 red/48000/2\r\na=fmtp:63 111/111\r\na=rtpmap:9 G722/8000\r\na=rtpmap:0 PCMU/8000\r\na=rtpmap:8 PCMA/8000\r\na=rtpmap:110 telephone-event/48000\r\na=rtpmap:126 telephone-event/8000\r\na=ssrc:2430753100 cname:MPddPt/R2ioP4vCm\r\na=ssrc:2430753100 msid:3c28addc-03b7-4170-b5cd-535bfe767e75 38c455bc-3727-4129-b336-8cd2c6a68486\r\n",
       "sdp_type": "answer"
   }
}'
                                Terminate call
                                curl -i -X POST 'https://graph.facebook.com/v14.0/1234567890/calls' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer EAADUMAze4GIBO1B7B.....<REPLACE_WITH_YOUR_TOKEN>' \
-d '{
   "messaging_product": "whatsapp",
   "action": "terminate",
   "call_id": "wacid.HBgLMTY1MDMxMzM5NzQVAgARGCBFRjNEODRBM0Q3NDZDM0Q0QzI4MzAwQjZBRkZGODM3NhwYCzEyMjQ1NTU0NDg5FQIAAA"
}'
                                Accept call
                                curl -i -X POST 'https://graph.facebook.com/v14.0/1234567890/calls' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer EAADUMAze4GIBO1B7B.....<REPLACE_WITH_YOUR_TOKEN>' \
-d '{
 "messaging_product": "whatsapp",
 "to": "14085550000",
 "action": "accept",
 "call_id": "wacid.HBgLMTY1MDMxMzM5NzQVAgASGCA5ODkyMDk2RkM2NUM1QTYwRkM4NjFDQzk0NkQwNDBCRRwYCzEyMjQ1NTU0NDg5FQIAAA==",
 "session": {
     "sdp": "v=0\r\no=- 7669997803033704573 2 IN IP4 127.0.0.1\r\ns=-\r\nt=0 0\r\na=group:BUNDLE 0\r\na=extmap-allow-mixed\r\na=msid-semantic: WMS 3c28addc-03b7-4170-b5cd-535bfe767e75\r\nm=audio 9 UDP/TLS/RTP/SAVPF 111 63 9 0 8 110 126\r\nc=IN IP4 0.0.0.0\r\na=rtcp:9 IN IP4 0.0.0.0\r\na=ice-ufrag:6O0H\r\na=ice-pwd:TYCbtfOrBMPpfxFRgSbYnuTI\r\na=ice-options:trickle\r\na=fingerprint:sha-256 9F:45:2C:A8:C3:C0:CC:9B:59:4F:D1:02:56:52:FA:36:00:BE:C0:79:87:B3:D9:9C:3E:BF:60:98:25:B4:26:FC\r\na=setup:active\r\na=mid:0\r\na=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level\r\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\r\na=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\r\na=extmap:4 urn:ietf:params:rtp-hdrext:sdes:mid\r\na=sendrecv\r\na=msid:3c28addc-03b7-4170-b5cd-535bfe767e75 38c455bc-3727-4129-b336-8cd2c6a68486\r\na=rtcp-mux\r\na=rtcp-rsize\r\na=rtpmap:111 opus/48000/2\r\na=rtcp-fb:111 transport-cc\r\na=fmtp:111 minptime=10;useinbandfec=1\r\na=rtpmap:63 red/48000/2\r\na=fmtp:63 111/111\r\na=rtpmap:9 G722/8000\r\na=rtpmap:0 PCMU/8000\r\na=rtpmap:8 PCMA/8000\r\na=rtpmap:110 telephone-event/48000\r\na=rtpmap:126 telephone-event/8000\r\na=ssrc:2430753100 cname:MPddPt/R2ioP4vCm\r\na=ssrc:2430753100 msid:3c28addc-03b7-4170-b5cd-535bfe767e75 38c455bc-3727-4129-b336-8cd2c6a68486\r\n",
     "sdp_type": "answer"
 }
}'
                                New call (using legacy connection param)
                                curl -i -X POST 'https://graph.facebook.com/v14.0/123456789/calls' \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer EAADUMAze4GIBO1B7B.....<REPLACE_WITH_YOUR_TOKEN>' \
-d '{
   "messaging_product": "whatsapp",
   "to": "14085550000",
   "connection": {
       "webrtc": {
           "sdp": "{\"sdp\":\"v=0\\r\\no=- 6314352886888624490 2 IN IP4 127.0.0.1\\r\\ns=-\\r\\nt=0 0\\r\\na=group:BUNDLE 0\\r\\na=extmap-allow-mixed\\r\\na=msid-semantic: WMS ccd3f422-8d7d-49c9-936c-a152979ee4fa\\r\\nm=audio 9 UDP/TLS/RTP/SAVPF 111 63 9 0 8 110 126\\r\\nc=IN IP4 0.0.0.0\\r\\na=rtcp:9 IN IP4 0.0.0.0\\r\\na=ice-ufrag:/PSS\\r\\na=ice-pwd:buBIz+JlbmakiCT7JdJIq/j0\\r\\na=ice-options:trickle\\r\\na=fingerprint:sha-256 43:08:34:16:67:E3:D9:A2:F5:AA:6A:AE:03:97:C8:D5:B8:F2:4B:40:79:C8:1A:44:53:69:4B:9C:89:88:D7:22\\r\\na=setup:active\\r\\na=mid:0\\r\\na=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level\\r\\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\\r\\na=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\\r\\na=extmap:4 urn:ietf:params:rtp-hdrext:sdes:mid\\r\\na=sendrecv\\r\\na=msid:ccd3f422-8d7d-49c9-936c-a152979ee4fa 4e58b2a9-c864-4752-8f4f-23f9ced35971\\r\\na=rtcp-mux\\r\\na=rtcp-rsize\\r\\na=rtpmap:111 opus/48000/2\\r\\na=rtcp-fb:111 transport-cc\\r\\na=fmtp:111 minptime=10;useinbandfec=1\\r\\na=rtpmap:63 red/48000/2\\r\\na=fmtp:63 111/111\\r\\na=rtpmap:9 G722/8000\\r\\na=rtpmap:0 PCMU/8000\\r\\na=rtpmap:8 PCMA/8000\\r\\na=rtpmap:110 telephone-event/48000\\r\\na=rtpmap:126 telephone-event/8000\\r\\na=ssrc:3354317731 cname:zgqSj/r4rlErlW23\\r\\na=ssrc:3354317731 msid:ccd3f422-8d7d-49c9-936c-a152979ee4fa 4e58b2a9-c864-4752-8f4f-23f9ced35971\\r\\n\",\"type\":\"offer\"}"
       }
   }
}'
                                Sample call connect webhook
                                Call connect webhook
                                {"entry":[{"changes":[{"field":"calls","value":{"calls":[{"session":{"sdp_type":"answer","sdp":"v=0\r\no=- 8076734947255960322 2 IN IP4 127.0.0.1\r\ns=-\r\nt=0 0\r\na=group:BUNDLE 0\r\na=extmap-allow-mixed\r\na=msid-semantic: WMS 68a296ba-41cc-41db-8edb-3ddf4dbbb483\r\na=ice-lite\r\nm=audio 3482 UDP/TLS/RTP/SAVPF 111 9 0 8 110 126\r\nc=IN IP4 31.13.65.130\r\na=rtcp:9 IN IP4 0.0.0.0\r\na=candidate:2754936280 1 udp 2113937151 31.13.65.130 3482 typ host generation 0 network-cost 50 ufrag kv6Jn8vBmEds/8\r\na=candidate:1581496399 1 udp 2113939711 2a03:2880:f211:d1:face:b00c:0:699c 3482 typ host generation 0 network-cost 50 ufrag kv6Jn8vBmEds/8\r\na=ice-ufrag:kv6Jn8vBmEds/8\r\na=ice-pwd:OhY8sT7v6PJe3bbs0Yx2TC/oPb5oatnK\r\na=ice-options:trickle\r\na=fingerprint:sha-256 46:14:2B:31:B1:9D:AF:15:81:E2:EF:45:B1:2B:96:3D:64:0E:63:F1:CC:9A:BD:88:D6:32:8F:E9:2A:13:3A:38\r\na=setup:active\r\na=mid:0\r\na=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level\r\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\r\na=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\r\na=sendrecv\r\na=rtcp-mux\r\na=rtpmap:111 opus/48000/2\r\na=rtcp-fb:111 transport-cc\r\na=fmtp:111 minptime=10;useinbandfec=1\r\na=rtpmap:9 G722/8000\r\na=rtpmap:0 PCMU/8000\r\na=rtpmap:8 PCMA/8000\r\na=rtpmap:110 telephone-event/48000\r\na=rtpmap:126 telephone-event/8000\r\na=ssrc:433528572 cname:VBDcSNi/cg1Wg6D3\r\na=ssrc:433528572 msid:68a296ba-41cc-41db-8edb-3ddf4dbbb483 audio#wx3mq6BITjB\r\na=ssrc:433528572 mslabel:68a296ba-41cc-41db-8edb-3ddf4dbbb483\r\na=ssrc:433528572 label:audio#wx3mq6BITjB\r\n"},"from":"15551112222","connection":{"webrtc":{"sdp":"{\"sdp\":\"v=0\\r\\no=- 8076734947255960322 2 IN IP4 127.0.0.1\\r\\ns=-\\r\\nt=0 0\\r\\na=group:BUNDLE 0\\r\\na=extmap-allow-mixed\\r\\na=msid-semantic: WMS 68a296ba-41cc-41db-8edb-3ddf4dbbb483\\r\\na=ice-lite\\r\\nm=audio 3482 UDP/TLS/RTP/SAVPF 111 9 0 8 110 126\\r\\nc=IN IP4 31.13.65.130\\r\\na=rtcp:9 IN IP4 0.0.0.0\\r\\na=candidate:2754936280 1 udp 2113937151 31.13.65.130 3482 typ host generation 0 network-cost 50 ufrag kv6Jn8vBmEds/8\\r\\na=candidate:1581496399 1 udp 2113939711 2a03:2880:f211:d1:face:b00c:0:699c 3482 typ host generation 0 network-cost 50 ufrag kv6Jn8vBmEds/8\\r\\na=ice-ufrag:kv6Jn8vBmEds/8\\r\\na=ice-pwd:OhY8sT7v6PJe3bbs0Yx2TC/oPb5oatnK\\r\\na=ice-options:trickle\\r\\na=fingerprint:sha-256 46:14:2B:31:B1:9D:AF:15:81:E2:EF:45:B1:2B:96:3D:64:0E:63:F1:CC:9A:BD:88:D6:32:8F:E9:2A:13:3A:38\\r\\na=setup:active\\r\\na=mid:0\\r\\na=extmap:1 urn:ietf:params:rtp-hdrext:ssrc-audio-level\\r\\na=extmap:2 http://www.webrtc.org/experiments/rtp-hdrext/abs-send-time\\r\\na=extmap:3 http://www.ietf.org/id/draft-holmer-rmcat-transport-wide-cc-extensions-01\\r\\na=sendrecv\\r\\na=rtcp-mux\\r\\na=rtpmap:111 opus/48000/2\\r\\na=rtcp-fb:111 transport-cc\\r\\na=fmtp:111 minptime=10;useinbandfec=1\\r\\na=rtpmap:9 G722/8000\\r\\na=rtpmap:0 PCMU/8000\\r\\na=rtpmap:8 PCMA/8000\\r\\na=rtpmap:110 telephone-event/48000\\r\\na=rtpmap:126 telephone-event/8000\\r\\na=ssrc:433528572 cname:VBDcSNi/cg1Wg6D3\\r\\na=ssrc:433528572 msid:68a296ba-41cc-41db-8edb-3ddf4dbbb483 audio#wx3mq6BITjB\\r\\na=ssrc:433528572 mslabel:68a296ba-41cc-41db-8edb-3ddf4dbbb483\\r\\na=ssrc:433528572 label:audio#wx3mq6BITjB\\r\\n\",\"type\":\"answer\"}"}},"id":"wacid.HBgLMTY1MDMxMzM5NzQVAgARGCAwQTJCRDYwNkEzQUNCQUVCMEFGMzYzRTYxNjMxMDdFMxwYCzE0MDg1NTUyODk5FQIAAA==","to":"16501230000","event":"connect","timestamp":"1724467313","direction":"BUSINESS_INITIATED"}],"metadata":{"phone_number_id":"105615555715855","display_phone_number":"15551112222"},"messaging_product":"whatsapp"}}],"id":"112735964992110"}],"object":"whatsapp_business_account"}






























































                                No comments to display




























             Back to top
